Cannondale Synapse Neo Electric Road Bike

Experience your favorite routes as never before – and take ones you never thought possible – on Synapse Neo. A powerful Bosch drive system, precision components, confident handling, and an ultra-smooth-riding carbon frameset come together to melt miles and reel in horizons.

Features

Tailwind Included
Long-distance comfort, effortless power, and an award-winning legacy. When the road calls for more, now you can answer

Synapse Neo is a carbon e-road bike for going the distance in comfort.
It’s built up with a precise and reliable Shimano Ultegra Di2 electronic drivetrain, light and fast HollowGram R45 carbon wheels, and a smooth-riding frameset made from our advanced Series 2 carbon construction. Propelled by a light but powerful Bosch Performance Line SX drive system, this bike will make any road your road.

What it's for
Speedy, spirited road riding - with a boost.

Highlights

• Lightweight carbon-fiber frame features sophisticated Series 2 Construction and proven endurance race geometry.
• Bosch Performance Line SX motor offers an ideal combination of low weight and smooth power, delivering up to 55 Nm of torque and 600 watts of output.
• Integrated 400Wh battery offers serious range for long rides, and keeps the weight low for a lively ride-feel.
• Shimano’s Ultegra Di2 12-speed electronic drivetrain delivers exceptionally smooth, crisp, effortless shifting.
• Race-ready HollowGram R45 carbon wheels with 700x30c Vittoria tires are fast and confident across a wide range of road surfaces.
• Vision Metron Aero Carbon bars and HollowGram 1 SAVE seatpost keep things comfortable, fast, and stylish.

Specifications

• Frame: Synapse Neo Carbon, Series 2 Carbon construction, internal downtube battery, integrated cable routing, 148mm dropout spacing, 12mm thru-axle, SAVE, flat mount disc, Pletscher kickstand mount (30mm)
• Fork: Synapse Neo Carbon, Series 2 Carbon construction, 1-1/8" to 1.5" Delta steerer, flat mount disc, internal routing, 12x110 thru-axle
• Headset: Integrated, 1-1/8" - 1.5"
• E-System: Drive Unit Bosch Performance Line SX, 25 km/h
• Battery: Bosch Compact Powertube 400Wh
• Charger: Bosch 2A

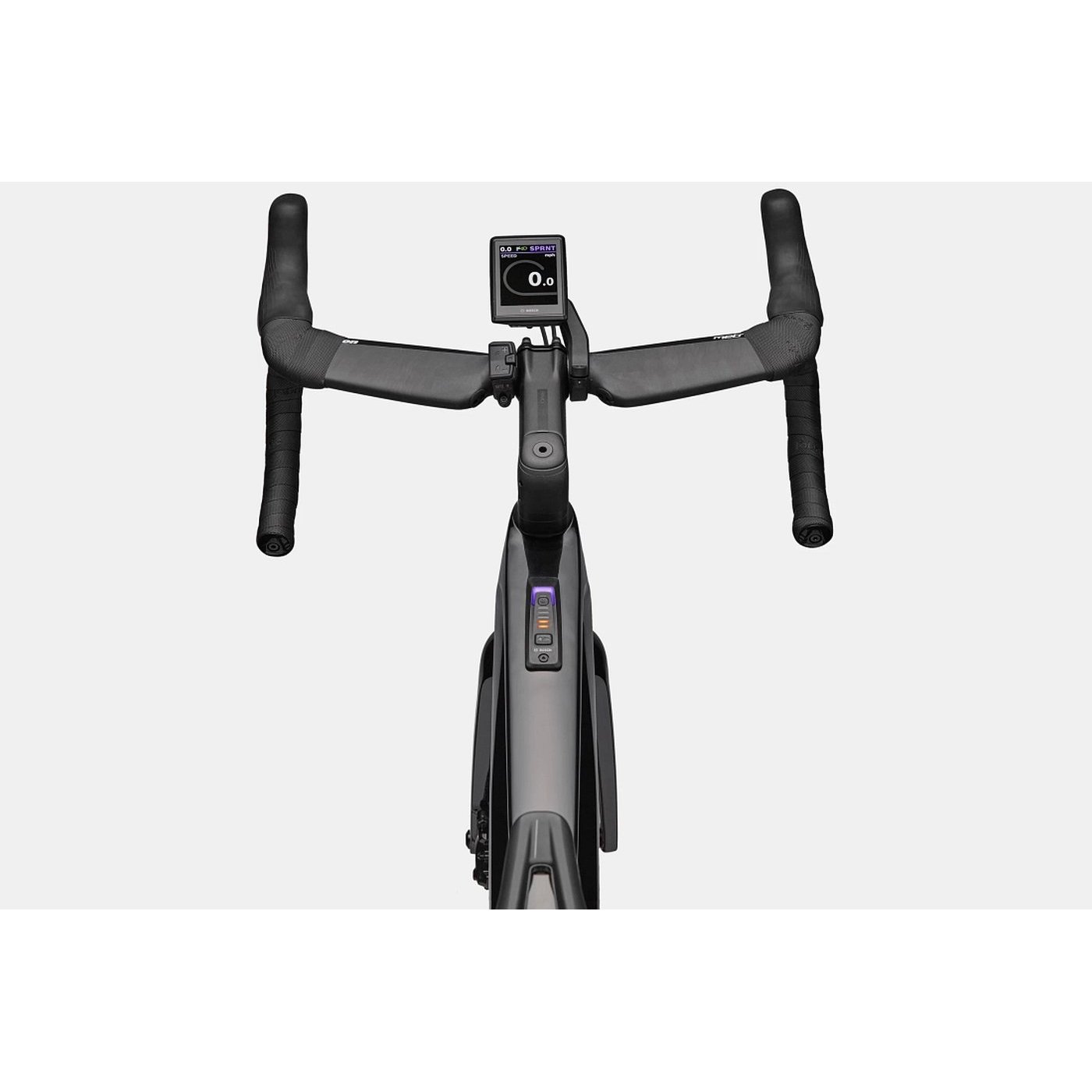

• Display: Bosch Kiox 500

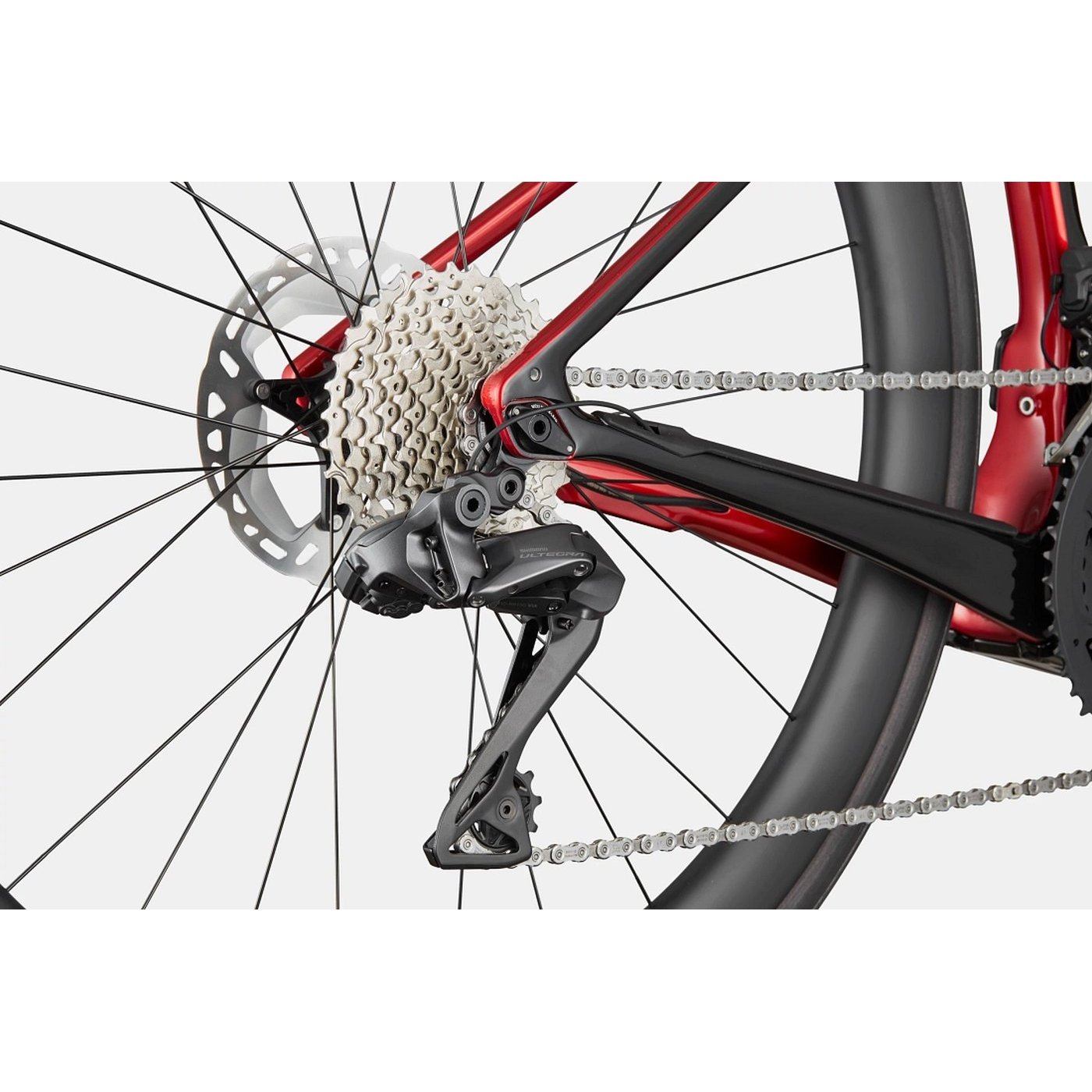

• Drivetrain: Rear Derailleur Shimano Ultegra Di2 R8150, 12-speed
• Front Derailleur: Shimano Ultegra Di2 8150, braze-on
• Shifters: Shimano Ultegra Di2 8150, 12-speed
• Chain: Shimano Ultegra, 12-speed
• Crank: FSA Bosch E-Bike, 50/34
• Rear Cogs: Shimano Ultegra, 11-34, 12-speed
• Brakes: Shimano Ultegra Di2 hydraulic disc, 160/160mm MT800 rotors
• Brake Levers: Shimano Ultegra Di2 hydraulic disc
• Wheels: HollowGram R 45, Carbon, 24h front, 28h rear, 50mm deep, 21mm inner width, tubeless ready
• Hubs: (F) HollowGram, sealed bearing 12x110mm centerlock / (R) HollowGram 3-pawl, sealed bearing, 12x148mm centerlock
• Tires: Vittoria Corsa, 700x30c
• Handlebar: Vision Metron Aero carbon, 31.8
• Stem: Cannondale C1 Conceal, Alloy, 31.8, -6°
• Grips: Fabric Knurl tape, 3mm
• Saddle: Fizik Tempo Argo R5, 150mm width, S-alloy rails
• Seatpost: Cannondale 1, SAVE, UD Carbon, 25.4x350mm (XS-S), 400mm (M-XL)

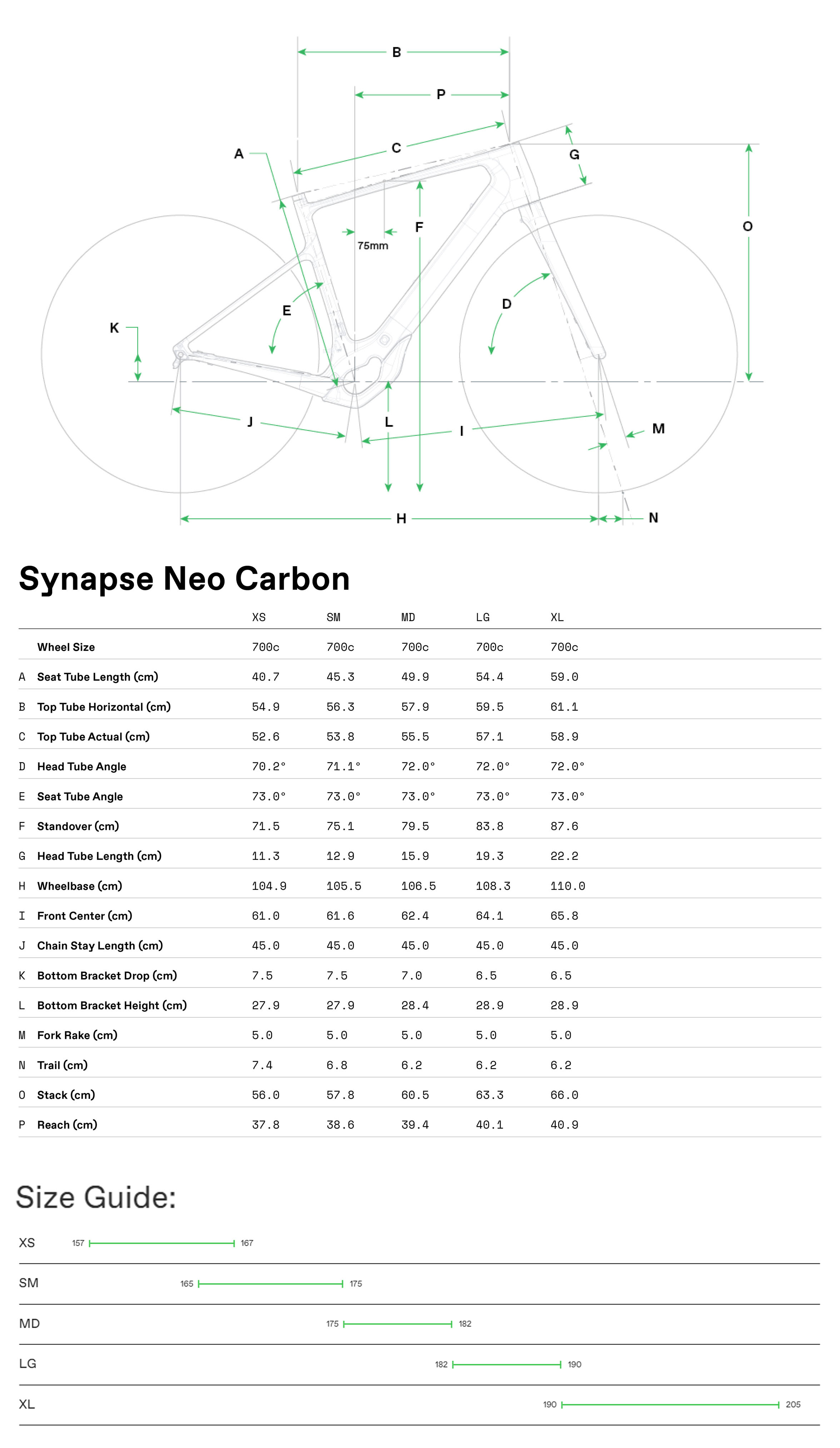

Geometry
