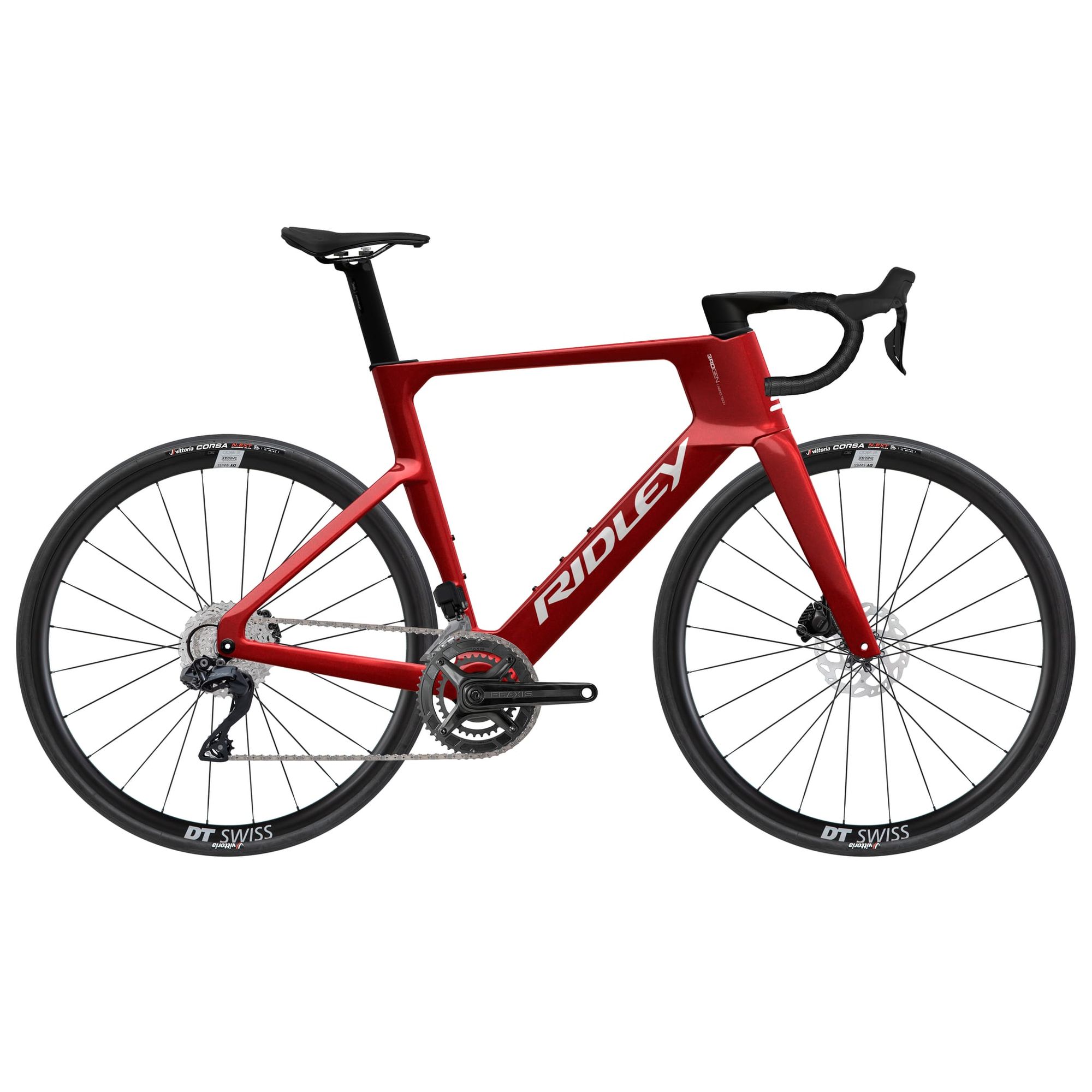

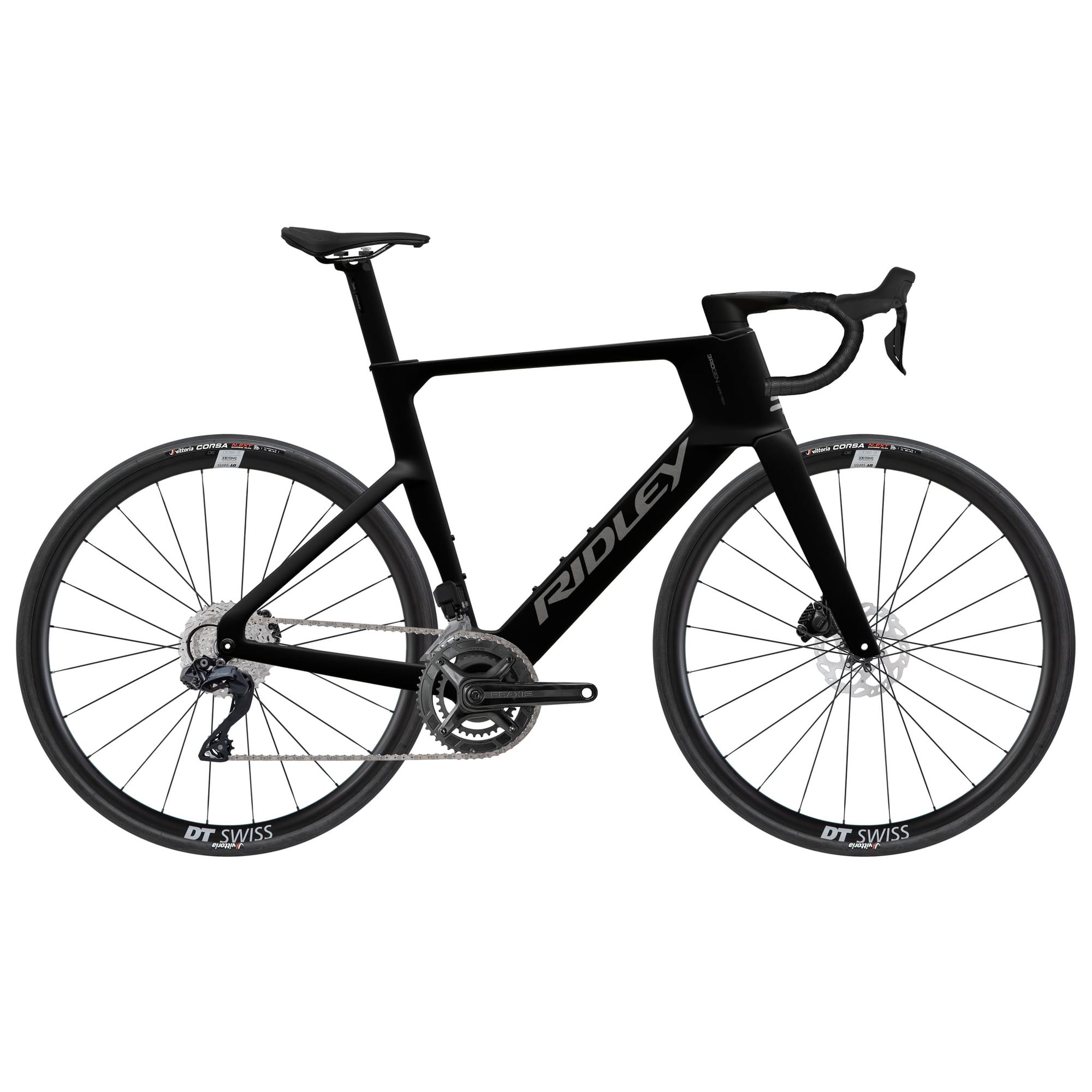

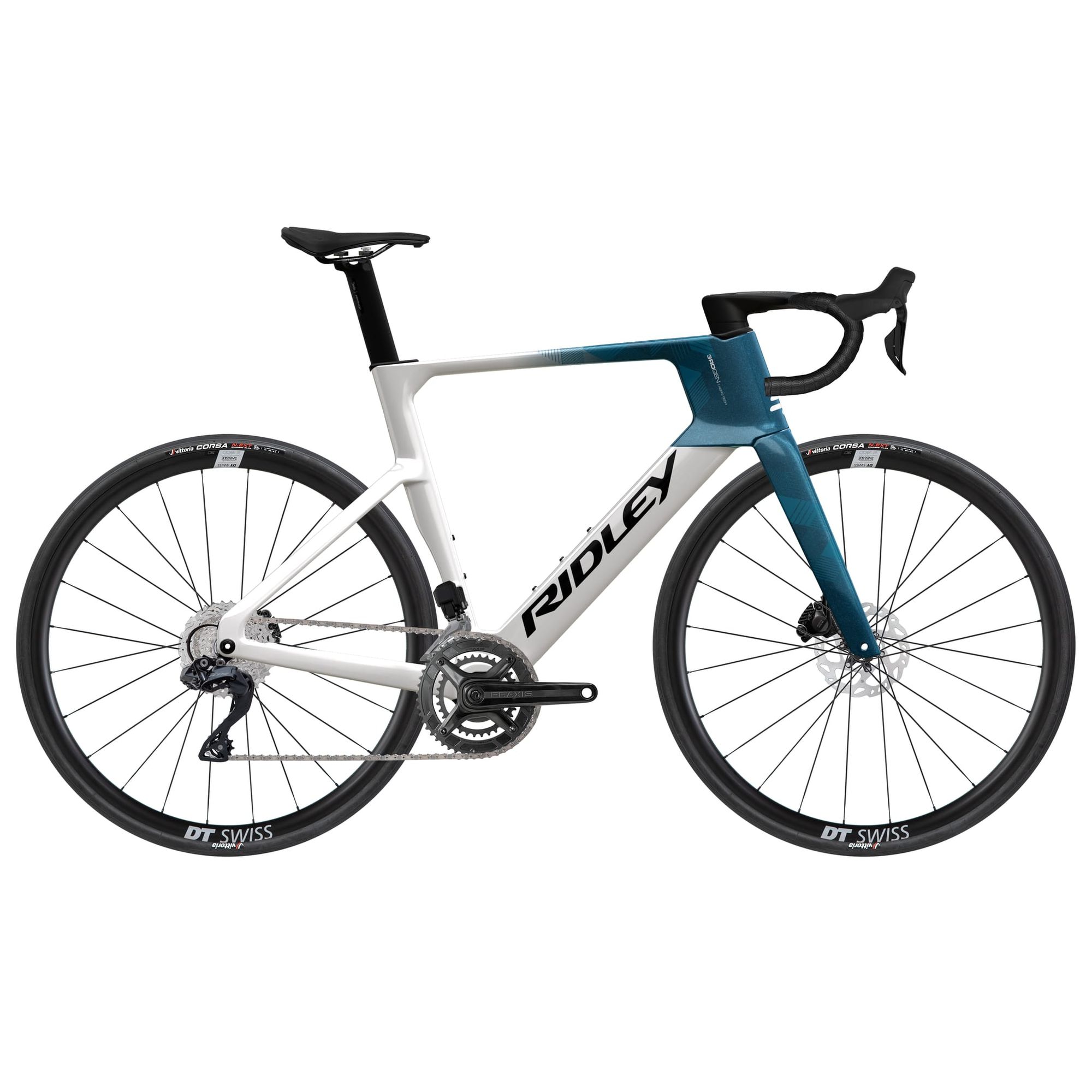

Ridley E-Noah 105 DI2 Electric Road Bike

The E-Noah is an e-bike for the rider looking for a pure riding experience with the added benefit of electrical support to make the riding more enjoyable.

Features

• We have selected the lightweight TQ system for this e-bike and we managed keep the look of the bike as close as possible to the non assisted Noah version. We have even hidden the controls and display to keep the e-system as stealthy as possible.
• In addition to the light system weight the TQ drive unit is also very silent and the support level it provides is least intrusive we have ever experienced from any drive unit.

Specifications

• Frame: E-Noah 7E9
• Fork: E-Noah 7E9
• Material: Carbon
• Groupset: Shimano 105 DI2 // 2x12s
• Crank: Praxis Type-5 // 50-34T // 172mm
• Cassette: Shimano 105// 12s // 11-34
• Electric bike: Yes
• Drive Unit: TQ Drive Unit
• Battery: TQ Lithium-Ion 290Wh
• Brake Type: Flat Mount
• Front Derailleur: Shimano 105 DI2 // 2x12 // Braze-on
• Rear Derailleur: Shimano 105 DI2 // 2x12s
• Handlebar: 4ZA CIP Integrated 2.0/size 110-380/420
• Seatpost: Deda aero seatpost for Ridley // 6mm Offset // 400mm
• Saddle: Selle San Marco Shortfit 2.0
• Front Wheel: DT Swiss E1800 Spline // TA 12x100mm // Tubeless Ready// 30mm Deep // 22mm Internal Width
• Rear Wheel: DT Swiss E1800 Spline // TA 12x142mm // Tubeless Ready // 30mm Deep // 22mm Internal Width
• Tyres: Corsa N.EXT 30x622 TLR full black G2.0 OEM HP
• Max Tire Clearance 700c (*): 34 mm
