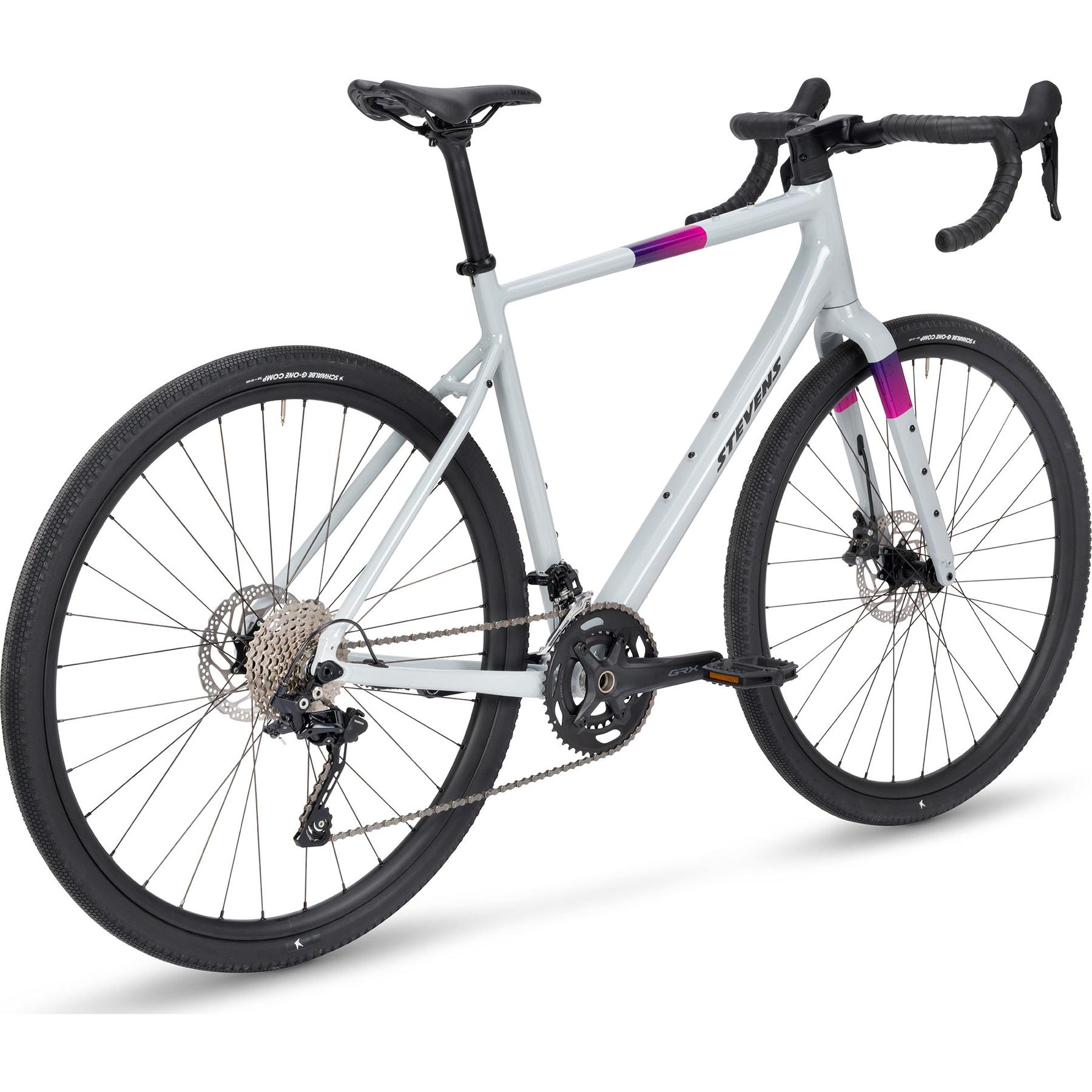

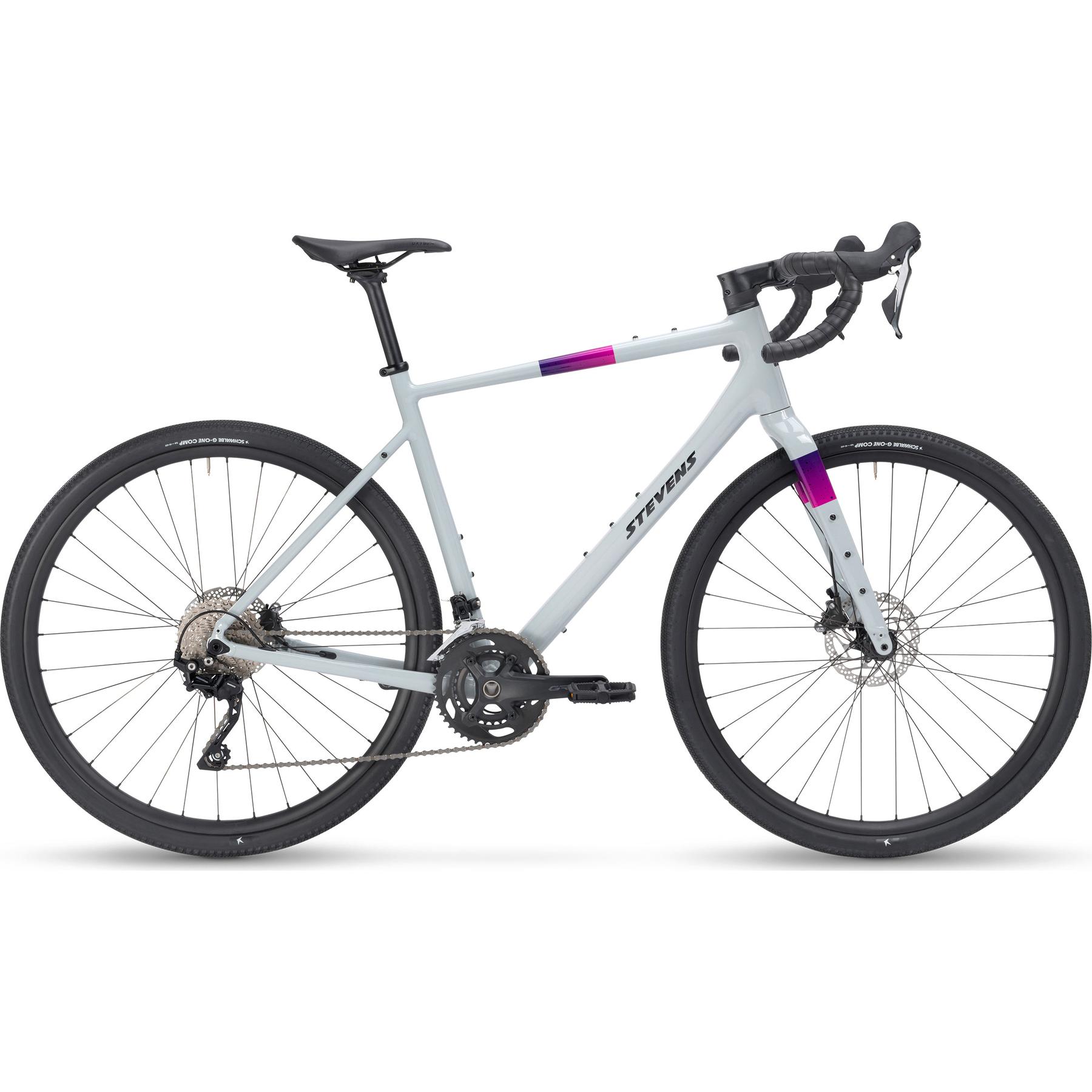

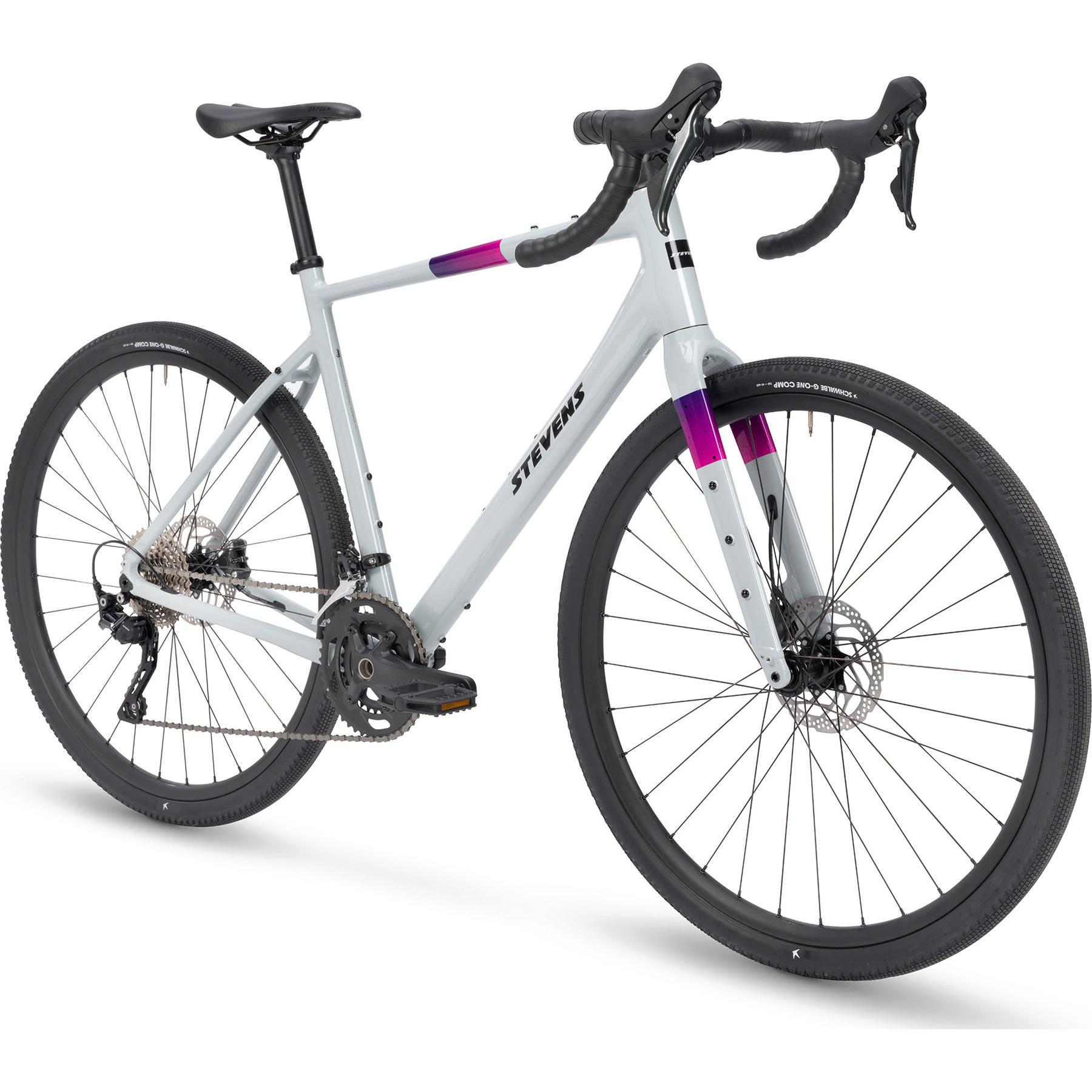

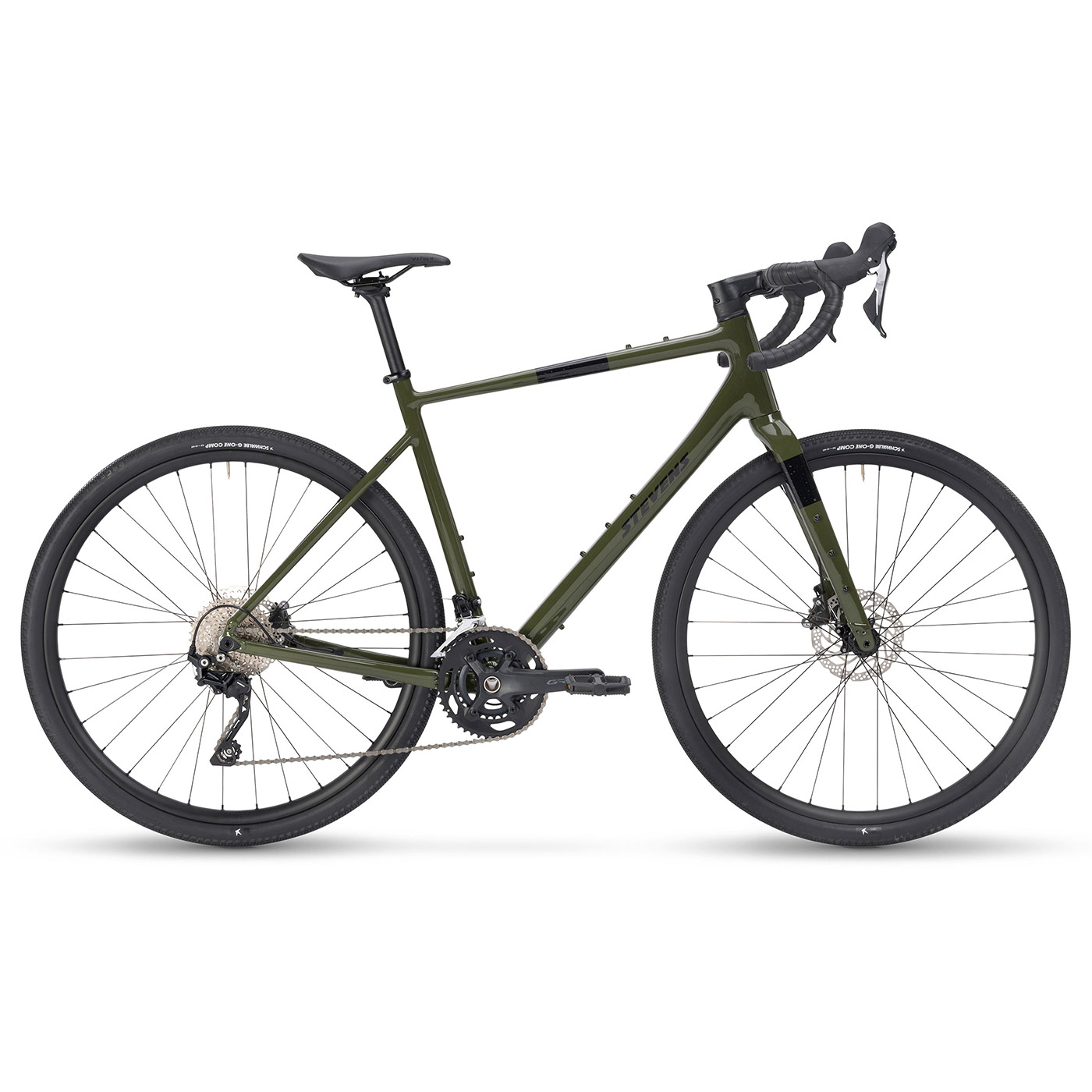

Stevens Gavere Eco Gravel Bike

With the Gavere series, STEVENS is introducing a completely new model range with and without FEQ everyday equipment. Based on the proven geometry of the STEVENS Alloy Gravel Bikes, the completely redesigned, high-quality aluminum frame combines a longer wheelbase with a comfortable geometry for long adventure rides as well as daily commuting. Bike packing attachment points on the fork, top tube, down tube, and seat tube allow for universal use, from a fun machine for fast laps on unpaved trails to multi-day tours. What are you waiting for?

The Gavere Eco offers riding fun on asphalt, gravel, and muddy trails. The aluminum frame with modern geometry, a long-distance riding position, and an S-Lite aluminum fork in khaki or concrete gray violet ensure smooth and comfortable riding. Up to 50mm tire clearance, robust gravel wheels, and 45mm Schwalbe G-OneComp tires guarantee grip and control. The Shimano GRX4002x10 drivetrain delivers precise gear changes, while threaded eyelets offer versatile bikepacking options. Our high-quality entry-level aluminum gravel bike with hydraulic disc brakes is ideal for anyone wanting to explore gravel.

Features

• The high-quality entry into the STEVENS Gravel Alloy world
• Completely newly developed aluminium frame with plenty of tyre clearance and steering-stiff fork
• Capable Shimano GRX 400 2x10 gears with hydraulic disc brakes
• Two colour variants and six frame sizes from 48 cm to 61 cm
• Grippy, 45 mm wide Schwalbe G-One Comp tubeless-ready tyres

Specifications

• Frame  Aluminium 6061
  • O.L.D.: 142 mm
  • Brake: flatmount disc
  • BB: Pressfit BSA68
  • Front derailleur mount: clamp
  • Cable routing: internal
  • Fender + rack mounts
• Fork  STEVENS S-Lite Aluminium
  • Tapered Steerer 1 1/8" - 1.5"
  • O.L.D.: 100 mm
  • Brake: flatmount disc
• Headset  Token TK1556PD
  • Upper bearing cup: IS52/28.6
  • Lower bearing cup: IS52/40
• Brake front  Shimano Tiagra
  • BR-4770
  • Hydraulic disc brake
  • 2 pistons
  • Flatmount standard
• Brake rear  Shimano Tiagra
  • BR-4770
  • Hydraulic disc brake
  • 2 pistons
  • Flatmount standard
• Brake disc  Shimano SM-RT30
  • Rotor size: 160 mm
  • Center-Lock
• Crankset  Shimano GRX 600
  • 46-30 T
  • BB type: BSA 68 mm / 2-Piece
• Derailleur front  Shimano GRX 400
  • FD-RX400-F + Adapter clamp 34,9 mm
  • 2-speed
• Derailleur rear  Shimano GRX 400 Shadow
  • RD-RX400-D
  • 10-speed
  • dircet Mount
  • Total capacity: 41 T
• Chain  Shimano CN-HG54
• Cassette  Shimano CS-HG50-10
  • CS-HG50
  • 10-speed
  • Combination: 11-13-15-17-19-21-24-28-32-36 T
• Pedals  ATB Pedal Reflex
• Hubs rear  Formula RXC-400
  • Axle: QR12x142 mm
• Hubs front  Formula CL-712
  • Axle: QR12x100 mm
• Rims  Oxygen G25 Disc
  • ETRTO: 25 x 622
• Tires  Schwalbe G-One Comp
  • Tire size: 45-622
  • Foldable
  • Green Compound
  • K-Guard
  • Tubeless Ready
• Handlebar  Scorpo Aero Gravel
  • Drop: 130 mm
  • Reach: 70 mm
  • Flare: 16°
  • Rise: 10 mm
  • Clamp: 31.8 mm
• Stem  Scorpo
  • Handlebar clamp: 31.8 mm
  • Angle: -6°
• Saddle  Oxygen Triton 2.0
• Seatpost  Scorpo
  • Length: 350 mm
  • Diameter: 27.2 mm
  • Insertion depth: min. 100 mm
• Shift/brake lever left  Shimano GRX 400 STI
  • ST-RX400-L
  • 2-speed
• Shift/brake lever right  Shimano GRX 400 STI
  • ST-RX400-R
  • 10-speed
• Bell  STEVENS D85 bell
• Weight  11.7 kg

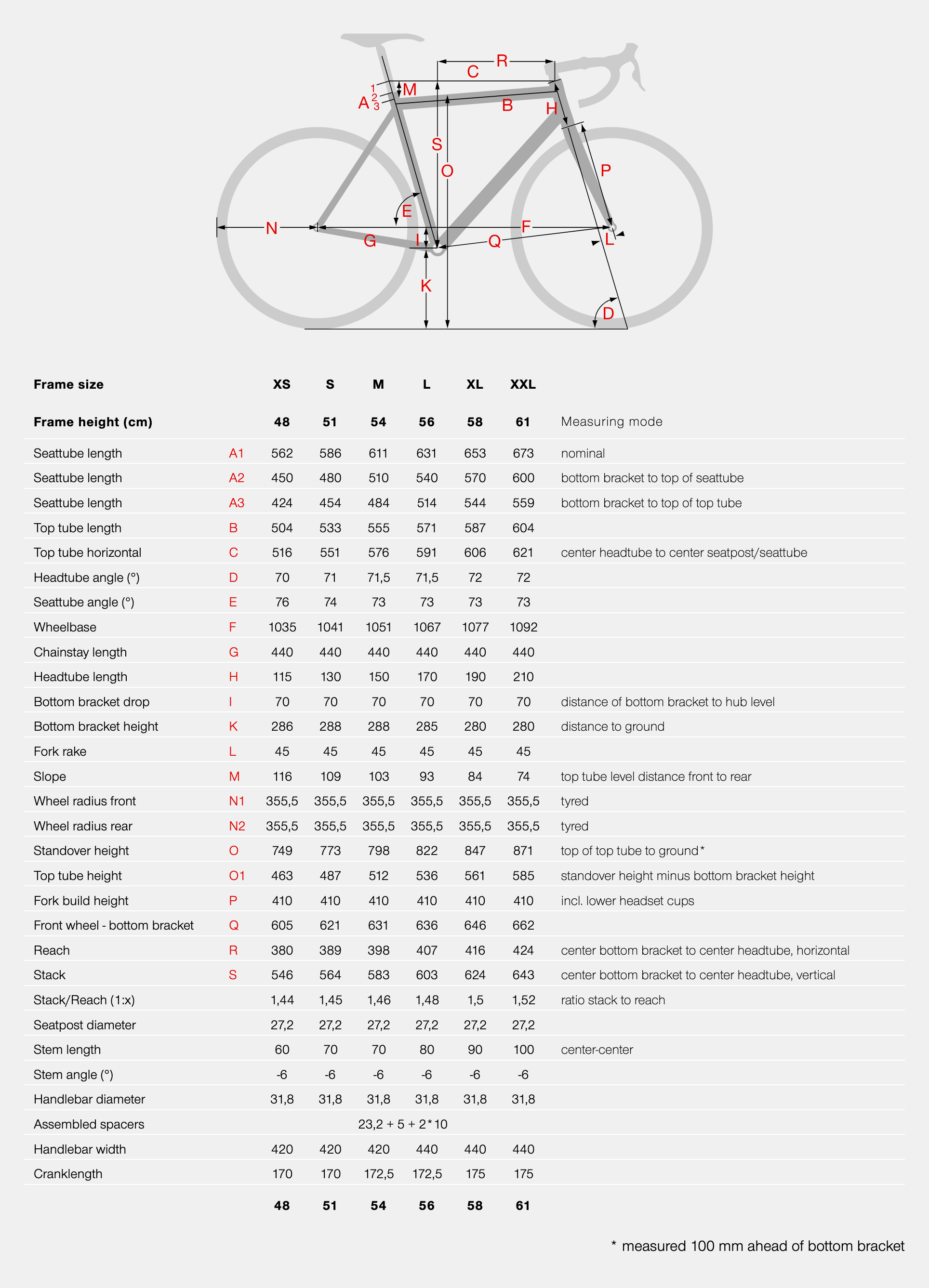

Geometry
