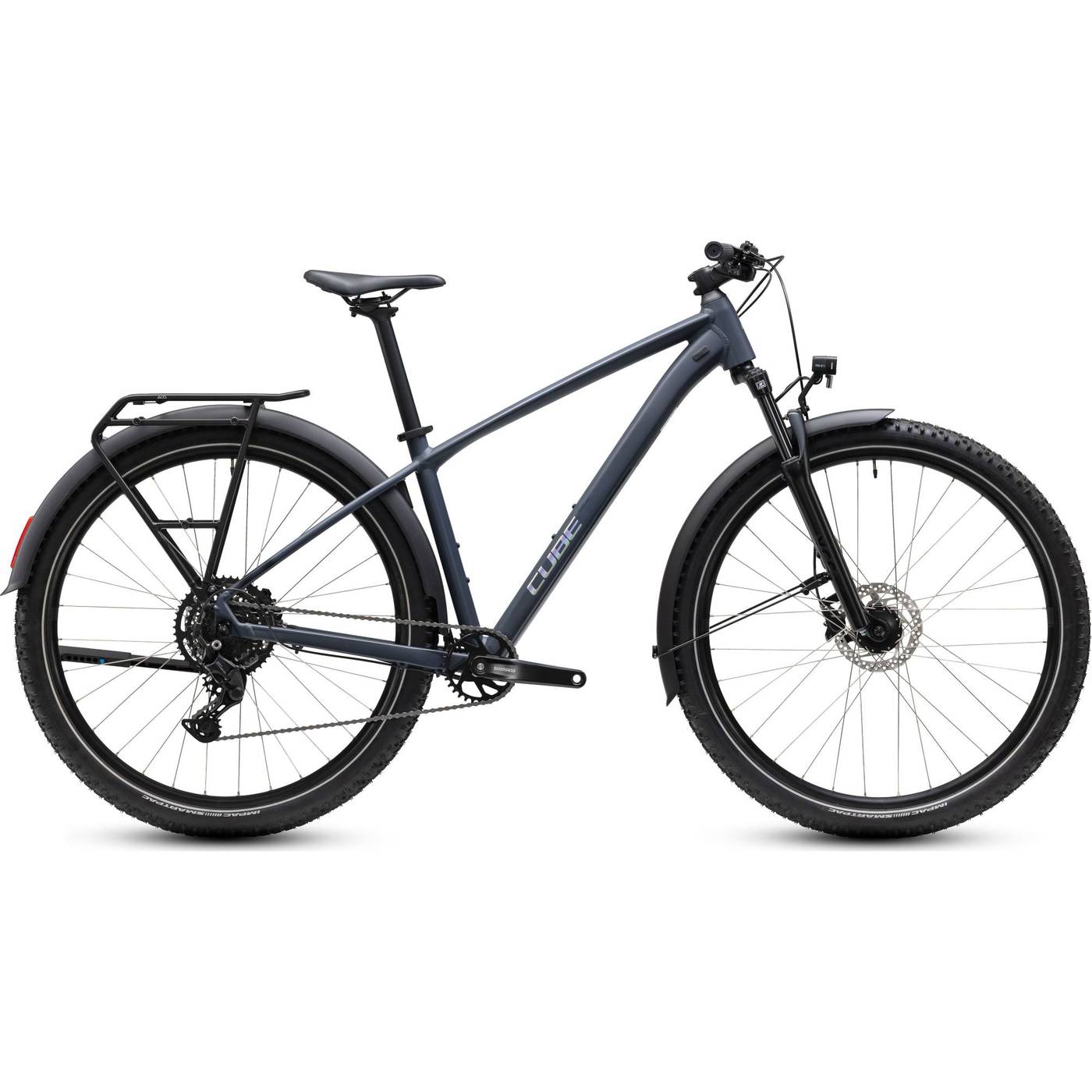

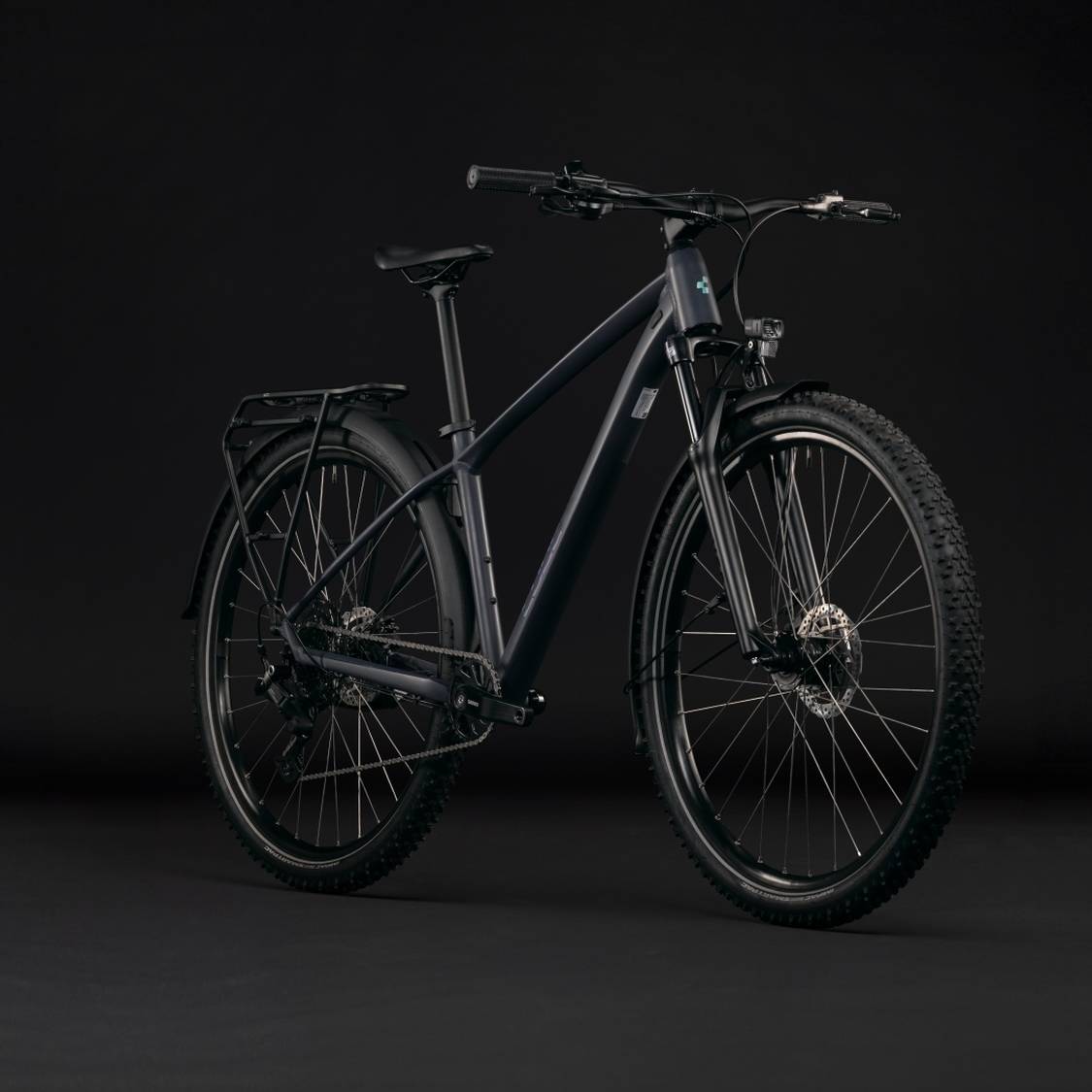

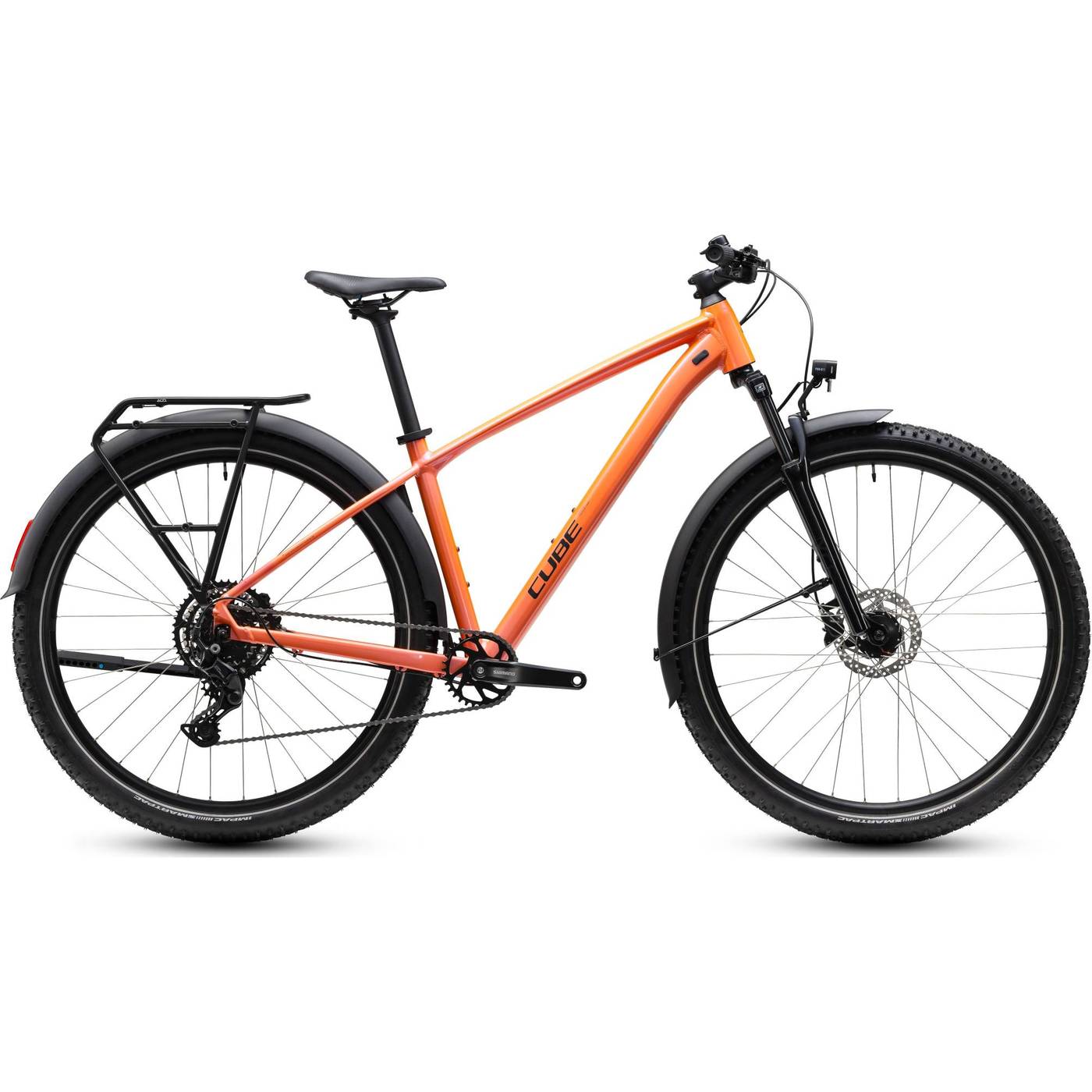

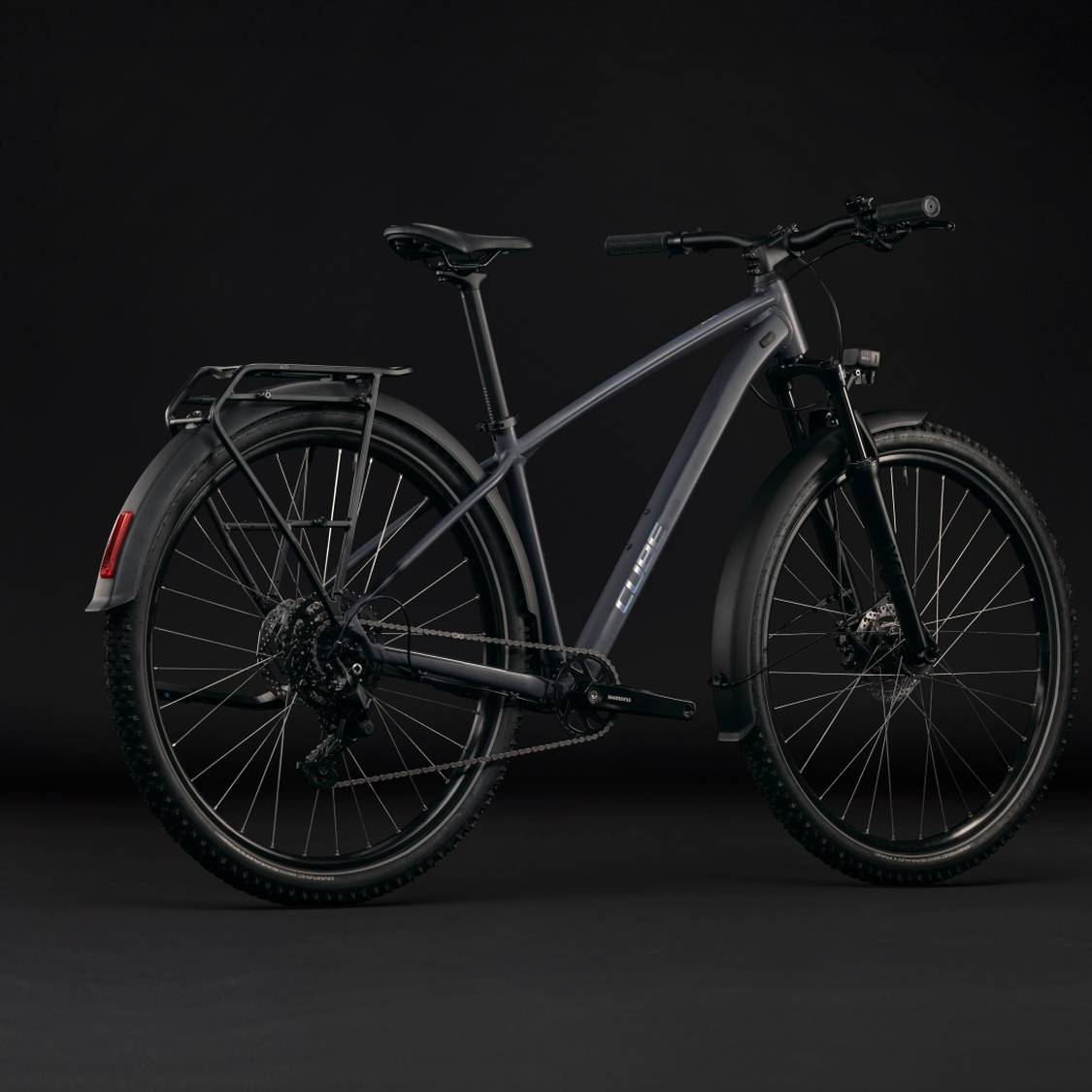

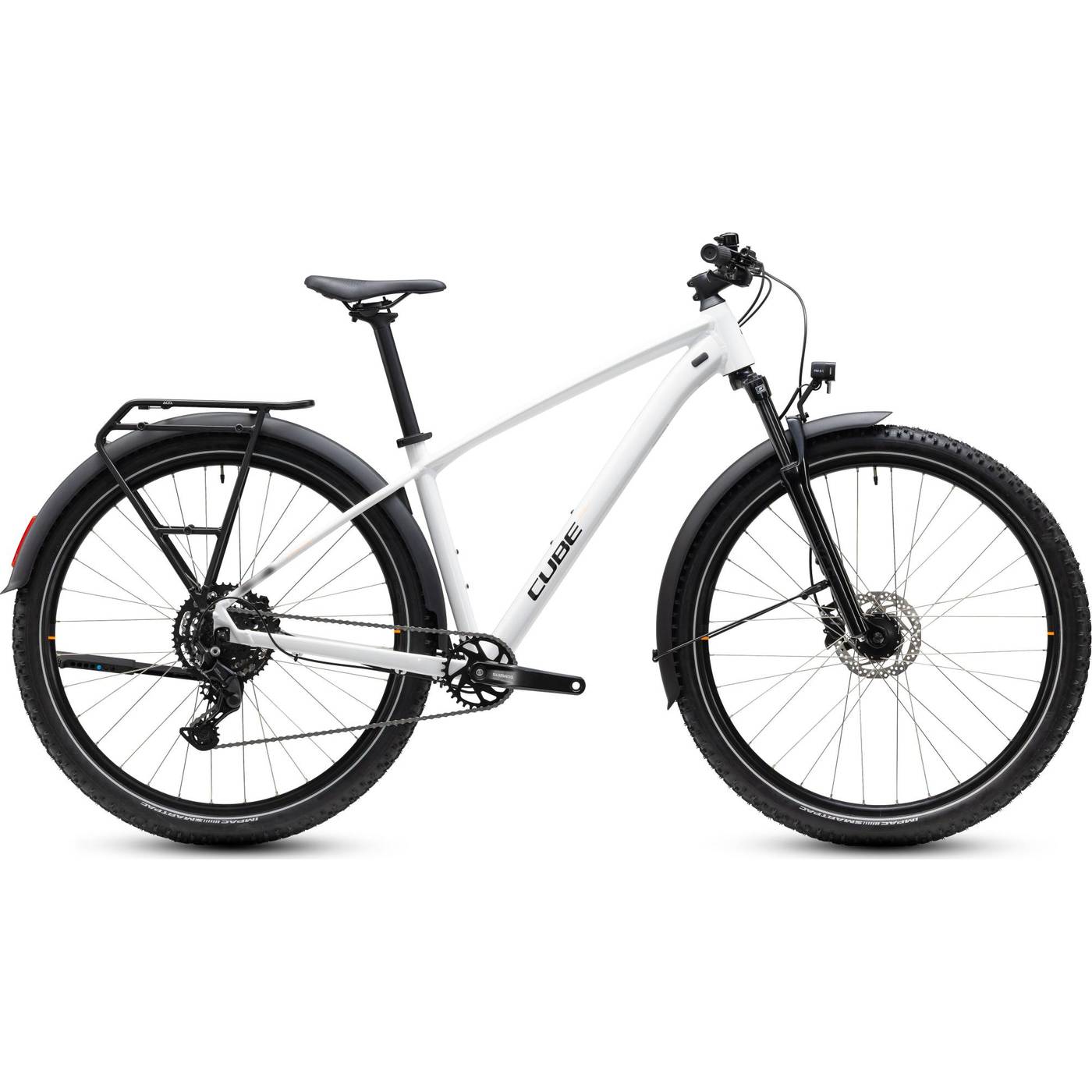

Cube Aim ONE FE Hardtail Mountain Bike

Whether you're heading out on an off-road adventure at the weekend or tackling the weekday commute – or, perhaps, both – the Aim ONE FE has got it covered. Fully Equipped means what it says – lights, mudguards, Semi-Integrated Carrier 2.1 and kickstand are all included. There's a Suntour suspension fork with 100mm of travel to take care of rough roads and bumpy tracks alike, backed up with 2.25in tyres and powerful Shimano hydraulic disc brakes. And, with the wide range and easy shifting of Shimano's 1x9 Cues gears, the right ratio for any scenario is right there at your fingertips.

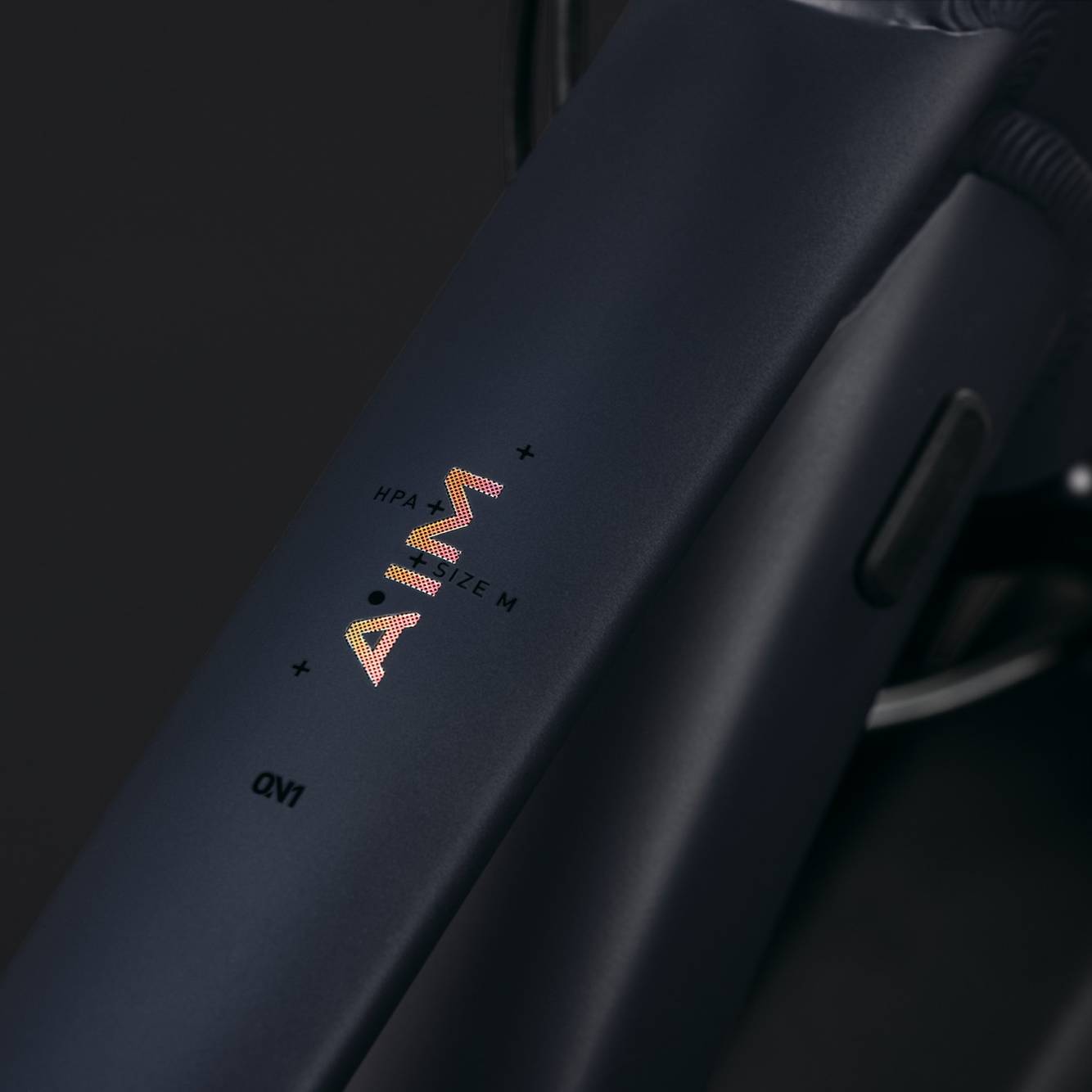

You'll notice that the Aim's High Performance Aluminium frame features almost organic lines, carefully crafted tube profiles and joints that are so smooth, one tube practically flows into the next. None of that is an accident – we believe a frame that functions brilliantly should also have an elegant form. To that end, we routed cables internally – including provision for a dropper seatpost. Mounting points include compatibility with our Semi-Integrated Carrier 2.1 and a flat mount kickstand, while a tapered head tube ensures confidence-inspiring handling and the replaceable gear hanger means it's easy to get up and running again in the event of a knock to the derailleur. We sweat the detail, so you can just pedal...

Specifications

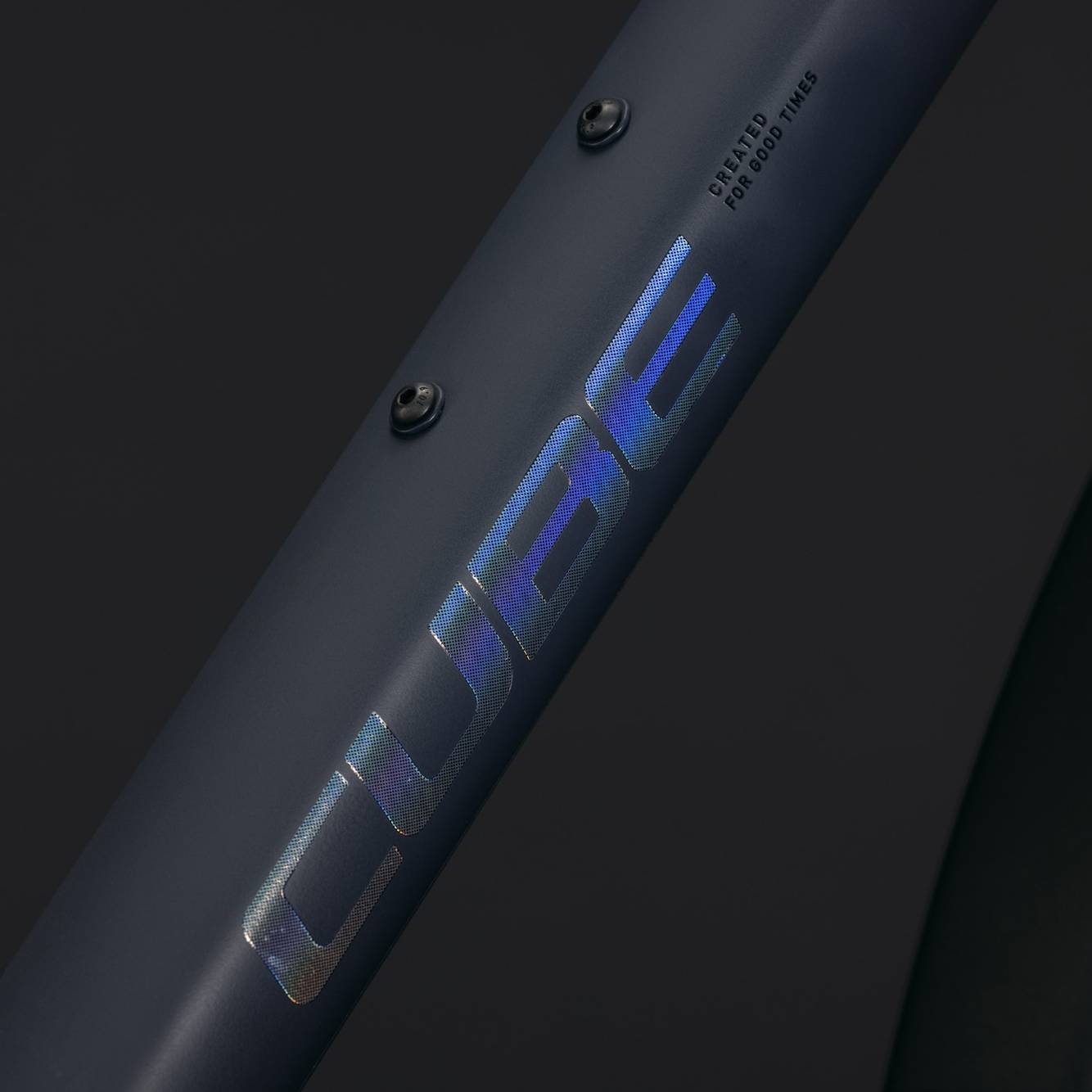

• Frame: Aluminium Lite, AMF, Double Butted, Internal Cable Routing, Flat Mount Brake, SIC Mount, FM Kickstand Mount
• Color: mole´n´prism
• Size: XS
• Sizes: Size Split: 27.5: XS, S // 29: M, L, XL

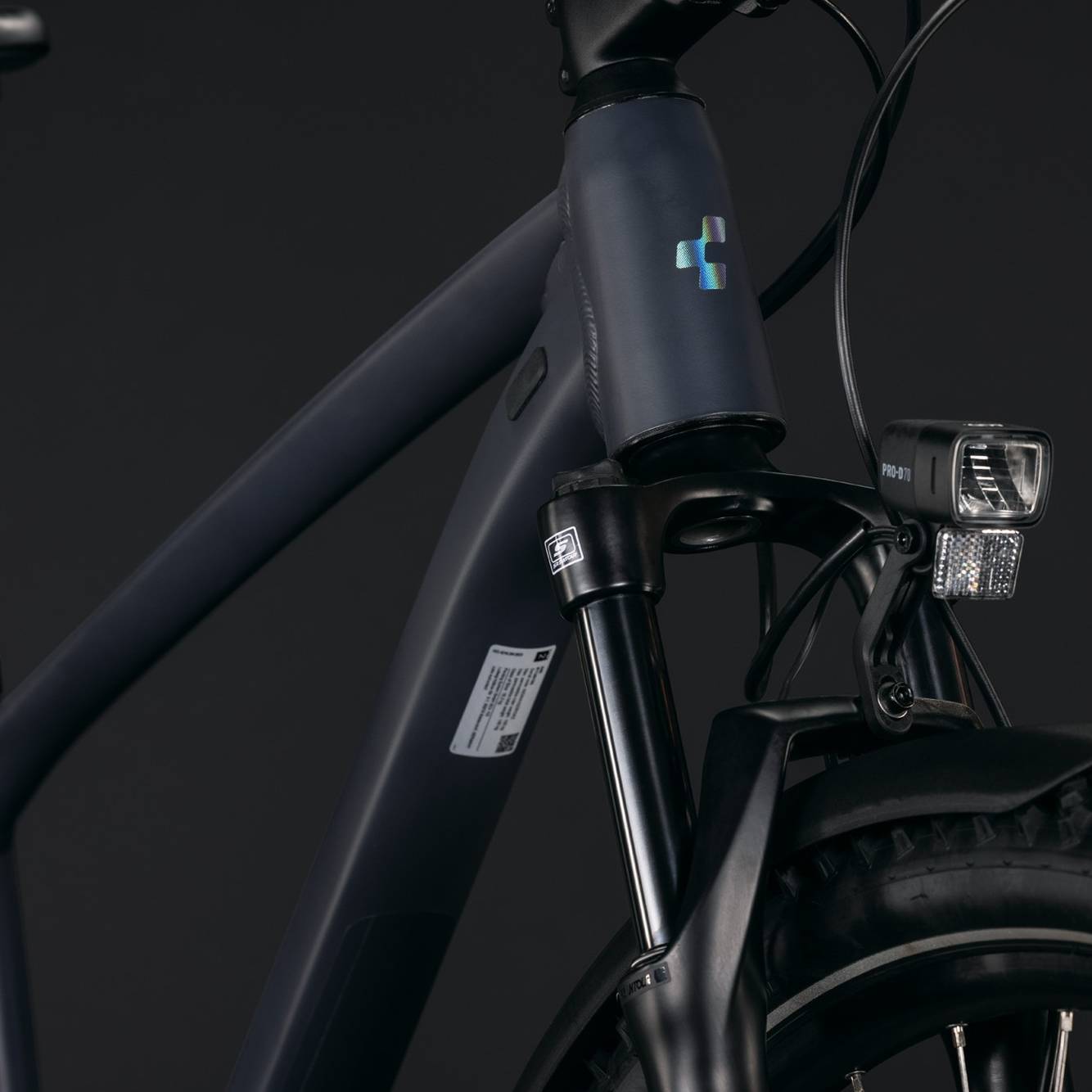

• Fork: SR Suntour XCS, 100mm
• Headset: CUBE FPH868p, Tapered, Semi-Integrated

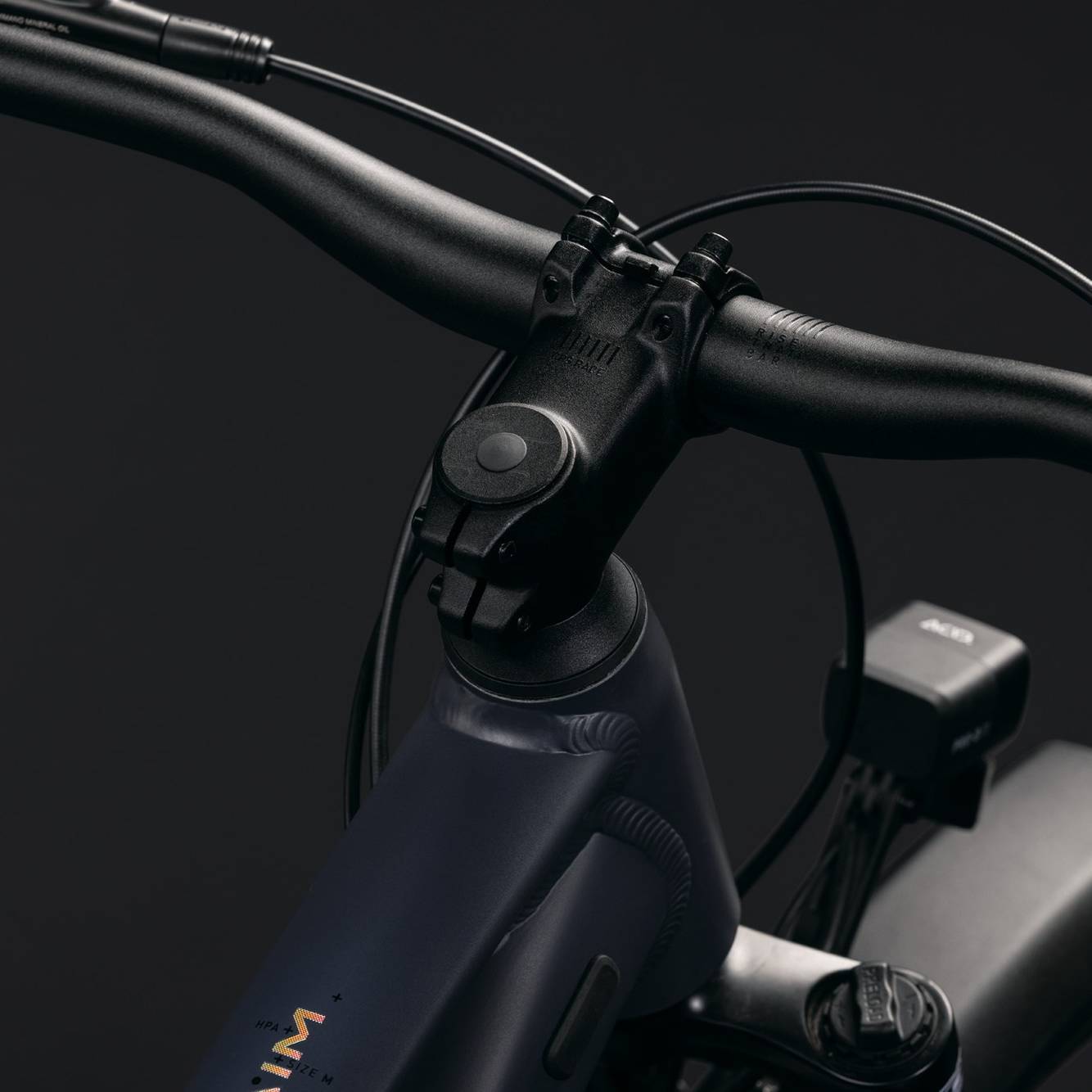

• Stem: CUBE Performance Stem, 31.8mm
• Handlebar: CUBE Rise Trail Bar, 680mm
• Grips: ACID Icon
• Rear Derailleur: Shimano Cues RD-U4000-GS, 9-Speed
• Shifters: Shimano Cues SL-U4010, Rapidfire-Plus
• Brakes: Shimano BR-MT200/UR300, Hydr, Disc Brake, PM/FM (160/160)
• Bottom Bracket: Thun Paso-ML, 73mm BSA

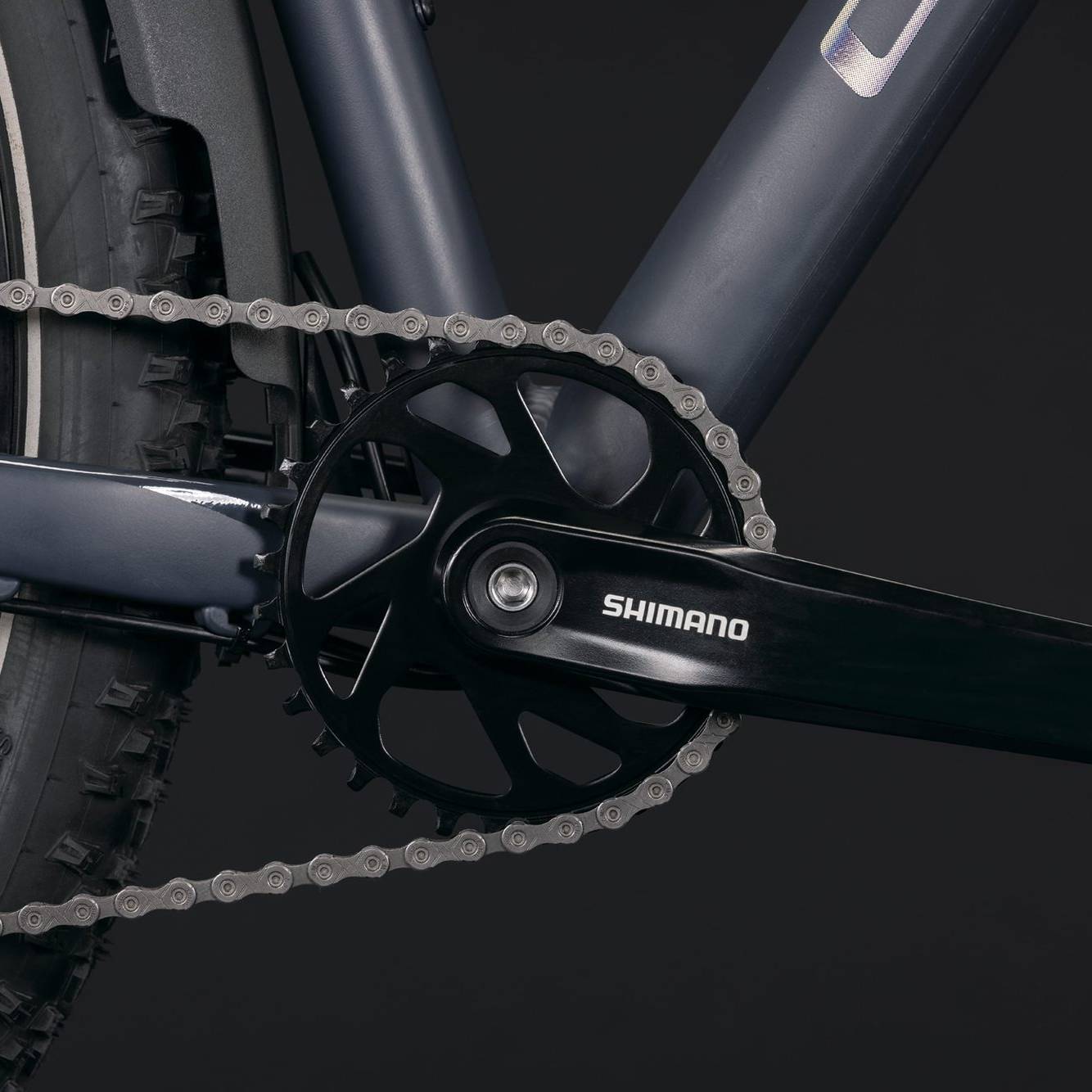

• Crankset: Shimano Cues FC-UT400, 32T
• Cassette: Shimano Cues CS-LG300, 11-46T
• Chain: KMC xGlide
• Rims: ACID EX25, 32H, Disc, Tubeless Ready
• Hub Front: Shimano DH-3D32, Hub Dynamo, QR
• Hub Rear: ACID Pro, QR, 6-Bolt
• Tires: CUBE MTB, Draht, 2.25
• Pedals: CUBE PP MTB
• Saddle: ACID Venec Lite
• Seatpost: CUBE Performance Post, 30.9mm
• Headlight: ACID Pro-D 70
• Rear Light: ACID Pro-D SIC 2.0
• Kickstand: ACID FM Pure Silent
• Mudguard: ACID 57 SIC 2.0
• Bell: ACID

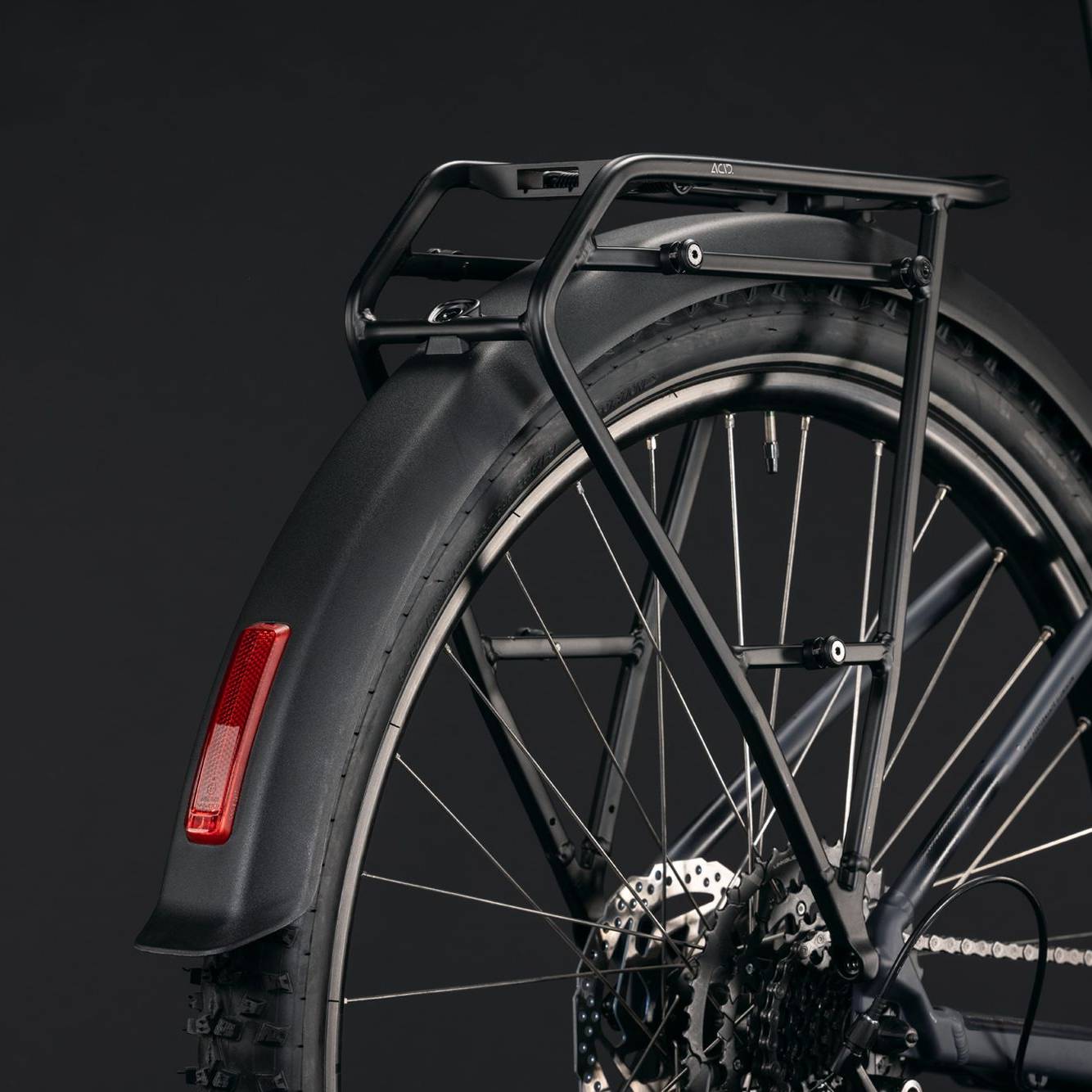

• Carrier: ACID SIC 2.1 RILink
• Weight: 18,0 kg
• System Weight max.: 140 kg
• Driver max. Weight: 100 kg
