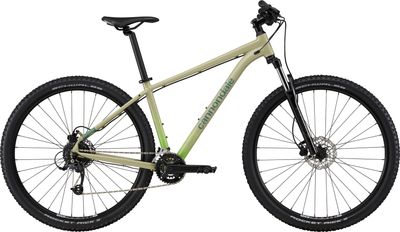

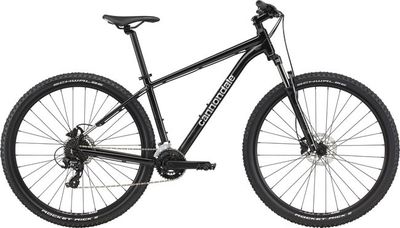

Cannondale Trail 8 Mountain Bike

A mountain bike built to raise your game and ignite a passion for the trail. Designed for the mountains and ready for anything.

Specifications

• Frame: SmartForm C3 Alloy, SAVE, 1-1/8" headtube, post mount disc, StraightShot internal cable routing, dropper post compatible, BSA-73
• Fork: SR Suntour XCE28, 100mm, Coil, 42mm offset (27.5") 46mm offset (29")
• Rims: WTB SX19, 32h
• Hubs: (F) Shimano HBTX 505 / (R) Shimano FHTX505
• Spokes: Stainless Steel, 14g
• Tires: Schwalbe Rocket Rick, 27.5/29 x 2.25", K-Guard
• Pedals: Cannondale Platform
• Crank: Prowheel, 36/22
• Bottom Bracket: Cartridge, square taper
• Chain: KMC X8, 8-speed
• Rear Cogs: Sunrace, 12-32, 8-speed
• Front Derailleur: Shimano Altus, 34.9 clamp
• Rear Derailleur: microSHIFT M36L
• Shifters: Shimano EF-505 Rapid Fire 8-speed
• Handlebar: 6061 Alloy Riser, 31.8mm, 25mm rise, 700mm
• Grips: Cannondale Dual-Density
• Stem: 6061 Alloy, 31.8, 8°
• Headset: Semi Integrated, 1-1/8"
• Brakes: Shimano MT200 hydraulic disc, 160/160mm RT10 rotors
• Saddle: Cannondale Stage 3
• Seatpost: Cannondale 3, 6061 Alloy, 31.6 x 350/400mm
• Sizes: XS, SM, MD, LG, XL

Geometry
