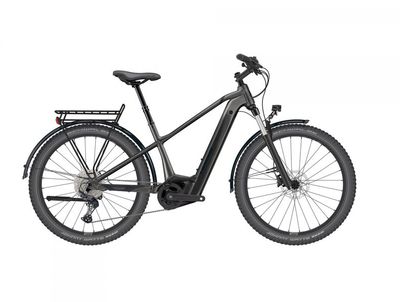

Lapierre e-Explorer 9.7 Electric City Bike

The E-Explorer is an electric assist bike designed for daily use. Thanks to its versatile and its progressive assistance, moving around has never been so simple. Fitted with mudguards and luggage rack, the E-Explorer makes your journey better. The completely integrated battery and the refreshed design will make you forget that this is an electric assist bike.

Specifications

• Frame: New Overvolt HT Integrated Bosch Supreme 5 alloy UDH Dropout + Kickstand & Fenders Ready
• Fork: RockShox 35 Silver TK Air boost 15x110mm 29’’ 120mm travel (e-MtB decals) Fender compatible
• Rear derailleur Shimano Deore RD-M5100, 11s Shadow +
• Crankset: Lapierre Overvolt ISIS 165mm (S/M) / 170mm (L/XL) + FSA Megatooth Chainring 38T
• System: Bosch Performance line CX Smart System “25kph” / Intube battery 750Wh / KIOX
• Sprocket: Shimano Deore CS-M5100 11-51T 11s
• Chain: KMC E11 Turbo 11s
• Brakes: Shimano M4100 4 (front) / 2 (rear) pistons
• Rotors: Shimano SMRT30 203mm (Front) / RTEM300 with Magnet 203mm Center Lock (Rear)
• Shiftlevers: Shimano Deore SL-M5100 11s
• Headset: FSA NO.55R/57E, Black Anodized, 1-1/8”-1.5”
• Handlebar: Lapierre alloy 6061DB, Width: 680mm, Rise: 15mm, Backsweep : 25°, Ø: 31.8mm
• Grips: XLC Ergonomic grips
• Stem: Lapierre, 17°, Ø: 31.8mm, Length : 90mm
• Seatpost: Lapierre Suspended dropper, Ø: 31.6mm, travel 100mm (S/M), 120mm (L/XL), Suspension : 40mm + Shimano lever
• Saddle: Selle Royal Vivo Ergo Reflective
• Front hub Shimano MT400, boost thru axle 32H Center Lock
• Rear hub Shimano MT400, boost thru axle 32H Center Lock
• Rims: Lapierre eAM+ 32H, 584x30C, Tubeless Ready
• Tires: Schwalbe Johnny Watts 65-584, DD, Raceguard, 67EPI (27,5”) (Front & Rear)
• Pedals VP VPE-527
• Accessories: Front light : Trelock I-AIRFLOW 70, 70 Lux
• Rear Light : Integrated Trelock rear light
• Fenders : Stronglight Aluminium with integrated rear light from Trelock
• Carrier : Stronglight Aluminium I-Carus MIK Ready 25Kg

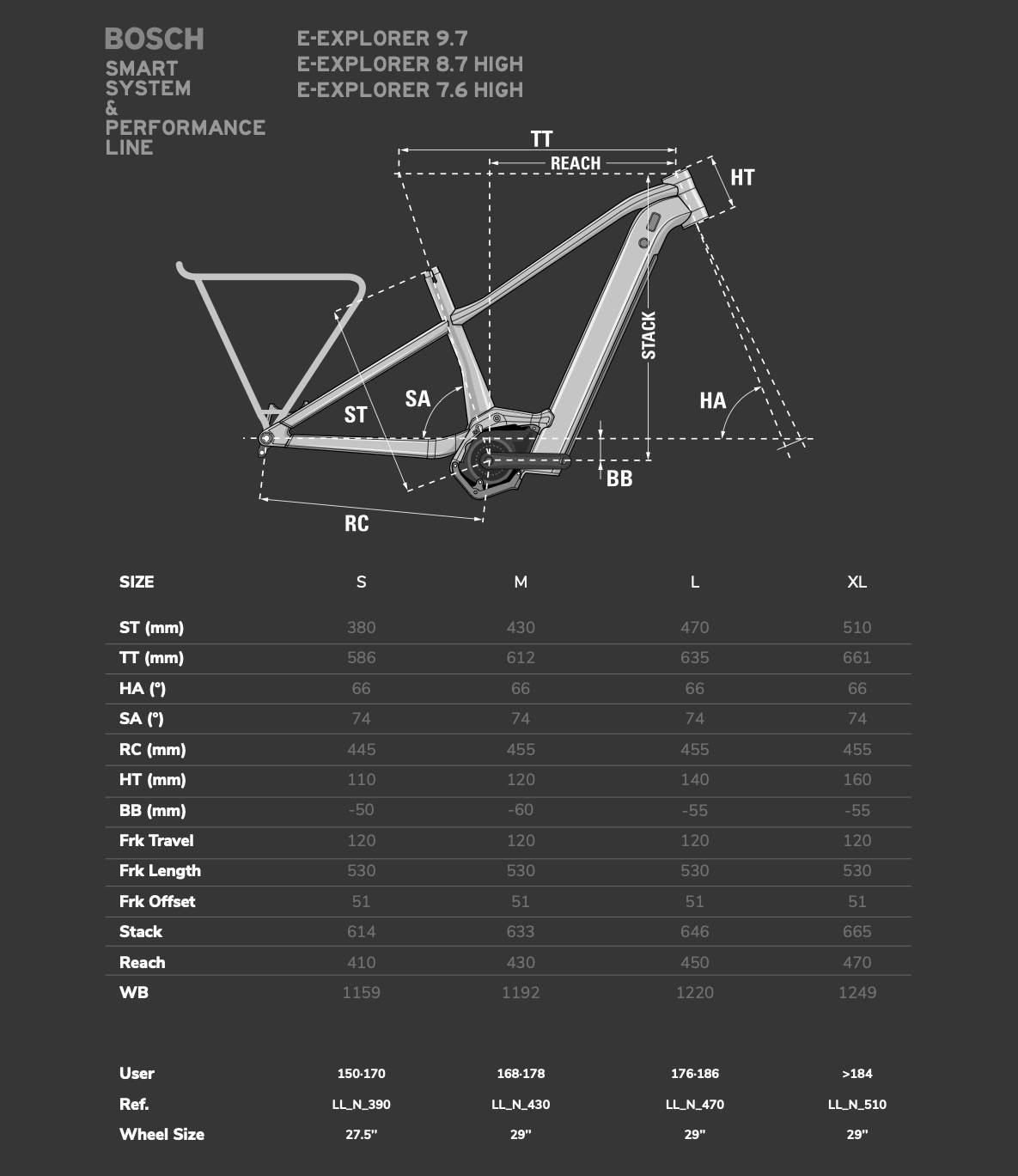

Geometry
