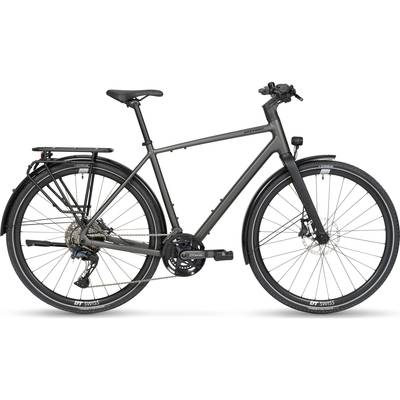

Stevens Caleta 9.1 HT City Bike

Freedom in its purest form.

Our premium sports trekking bike impresses with high-quality components and a dynamic aluminium frame in elegant Metal Grey. Whether for commuting, weekend trips or multi-day tours, the Caleta 9.1 stands for maximum riding enjoyment and reliable performance. The Shimano CUES U8000 2x11 gear system offers precise, low-maintenance gear changes on any terrain. From transporting children to panniers – the luggage rack makes your everyday life easier, while the bright hub dynamo LED lighting ensures safety and style.

Features

• First-class equipped, sporty trekking bike
• High-quality Shimano CUES U8000 2x11-speed drivetrain
• High-deceleration Shimano CUES U8000 brakes
• Elegant 205 lumen Supernova lighting system
• Lightweight, stable aluminium fork

Specifications

• Frame: Aluminium 6061, O.L.D.: 142 mm, Brake: postmount disc 6", BB: BSA, Cable routing: internal
• Fork: STEVENS S-Lite Aluminium, Tapered Steerer 1 1/8" - 1.5", O.L.D.: 100 mm, Brake: postmount disc 7"
• Headset: Acros AIX-336 Taper 1 1/8"-1,5", Upper bearing cup: IS52/28.6, Lower bearing cup: IS52/40
• Brake front: Shimano CUES U8000, BR-U8000, Hydraulic disc brake, Postmount standard, 2 pistons
• Brake rear: Shimano CUES U8000, BR-U8000, Hydraulic disc brake, Postmount standard, 2 pistons
• Brake disc: Shimano SM-RT64, Rotor size: 180 mm, Center-Lock
• Crankset: Shimano CUES U8000, Shimano FC-U8000-2, 46-32 T, Hollowtech II
• Derailleur front: Shimano CUES U8000, FD-U8010-LL3, 2-speed
• Derailleur rear: Shimano CUES U8000 Shadow+, RD-U8020-SGS, 11-speed, Total capacity: 48 T
• Chain: Shimano CN-LG500, LINKGLIDE
• Cassette: Shimano CS-LG700-11, 11-speed, Combination: 11-13-15-17-20-23-26-30-34-39-45 T
• Pedals: ATB Alu Pro Reflex
• System wheel front: DT Swiss HG 1800 Spline, Axle: QR12x100 mm
• System wheel rear: DT Swiss HG 1800 Spline, Axle: QR12x142 mm
• Tires: Schwalbe G-One Overland Performance
• Handlebar: Scorpo Rise, Width: 700 mm, Backsweep: 9°, Rise: 25 mm, Clamp: 31.8 mm
• Stem: Scorpo, Handlebar clamp: 31.8 mm, Angle: 20°
• Saddle: Selle Royal Vivo Ergo Athletic
• Seatpost: Scorpo, Length: 350 mm, Diameter: 27.2 mm, Insertion depth: min. 100 mm, Offset: 10 mm
• Shift lever left: Shimano CUES U8000, SL-U8000-L, 2-speed, I-Spec II
• Shift lever right: Shimano CUES U8000, SL-U8000-11IR, 11-speed, I-Spec II
• Brake lever: Shimano CUES U8000, 3 finger, I-Spec II
• Headlight: Supernova E3 Pure 3, Illuminance: 205 lumen, Always On function
• Taillight: Supernova TL 3 Mini, Stationary taillight
• Carrier: Racktime STV RC 04, System: SNAP IT 2.0 & Kid'n'Carry, QL3.1 Mounting system
• Mudguards: Curana Apollo 60
• Kickstand: STEVENS Edge, Kickstand mount: KSA 40
• Bell: STEVENS D85 bell
• Weight: 14.3 kg
• Laden weight: 140 kg
• Color(s): Metal Grey
• Sizes: HT: S, M, L, XL, XXL

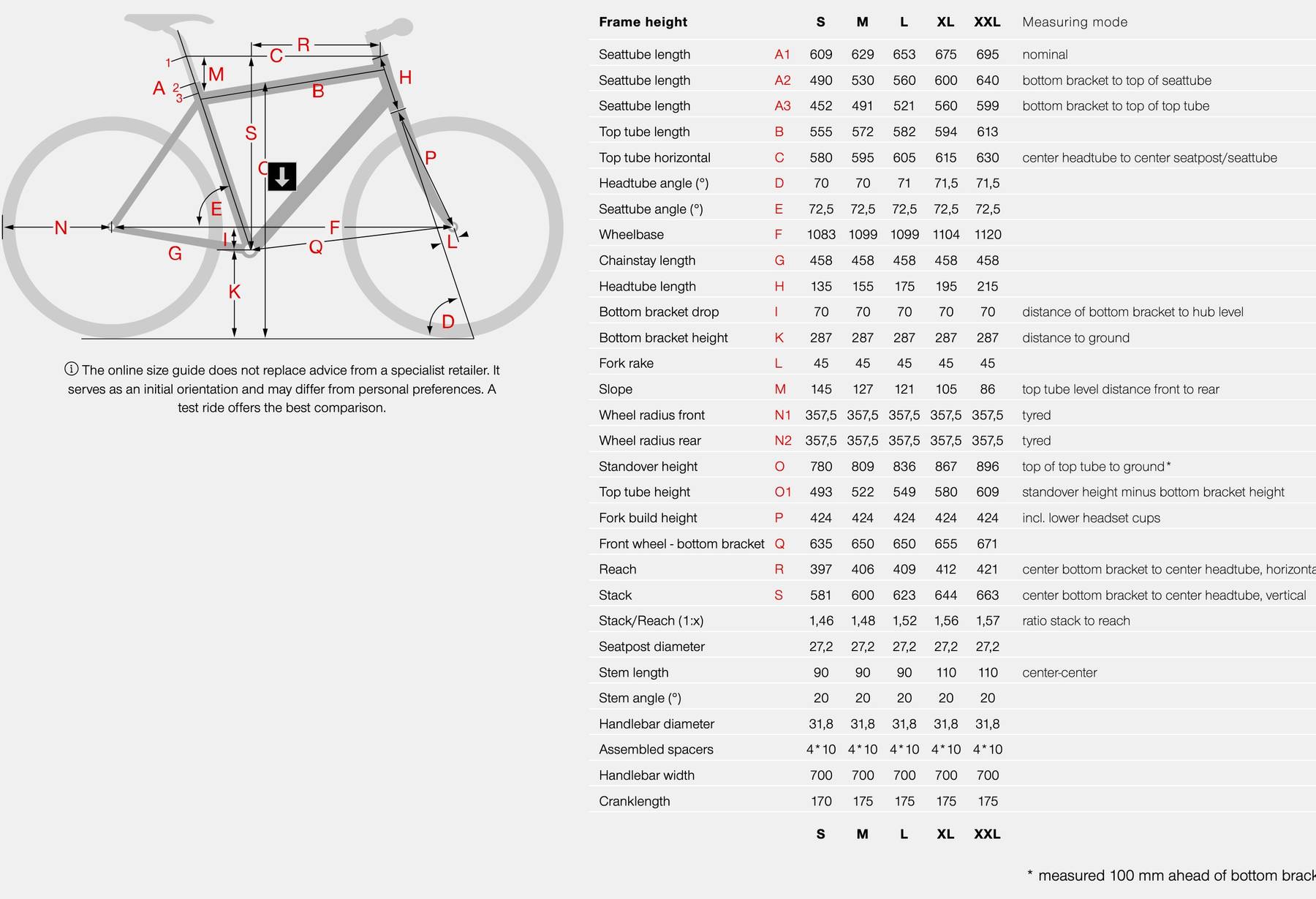

Geometry
