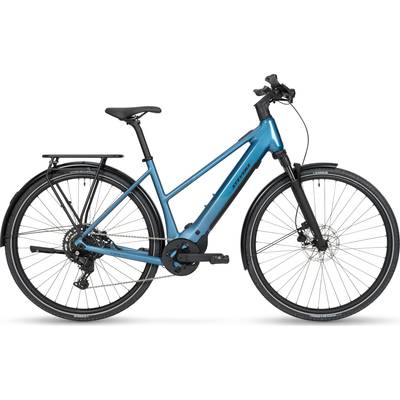

Stevens E-Comuna 6.4.1 LT Womens Electric City Bike

The new lightness.

With its elegant, lightweight design and robust off-road genes, the E-Comuna 6.4.1 bridges the gap between everyday life and adventure. Whether for your daily commute, weekend rides, clocking up the miles or gathering impressions. The E-Comuna 6.4.1 is a reliable companion on all your journeys and, weighing in at less than 21 kilograms, a real lightweight. This is thanks to the compact yet powerful Bosch Performance Line SX drive unit with up to 60 Nm of torque and the equally lightweight Bosch PowerTube 400 battery. Both are discreetly integrated into the completely redesigned aluminium frame. For rides off the beaten track, the suspension fork with 60 millimetres of travel offers plenty of comfort and riding safety. Available in understated Nordic Fade as a high-tube and low-tube version.

Features

• Sporty e-touring bike for universal use
• Bosch Performance Line SX Drive Unit with max. 60 Nm torque and 400 Wh Bosch CompactTube battery
• Practical Shimano CUES U4000 1x9-speed drivetrain
• Reliable, confidently gripping Tektro 2-piston disc brakes
• Off-road capability thanks to 60 mm suspension fork and Schwalbe G-One Overland tyres

Specifications

• Frame: Aluminium 6061, O.L.D.: 142 mm, Brake: Flatmount disc 7", BB: Bosch, Cable routing: internal
• Fork: SR Suntour NRX32IL-D, Travel: 60 mm, Air suspension, Tapered Steerer 1 1/8" - 1.5", O.L.D.: 100 mm, Brake: postmount disc 7"
• Headset: Acros AZX, Upper bearing cup: ZS56/28.6, Lower bearing cup: ZS56/40
• Brake front: Tektro HD-T280, Hydraulic disc brake, 2 pistons
• Brake rear: Tektro HD-T280, Hydraulic disc brake, 2 pistons
• Brake disc: Tektro TR180-35A, Rotor size: 180 mm, Center-Lock
• Crankset: FSA CK-747/IS, BB type: Bosch / ISIS
• Motor sprocket: STEVENS, 38 T, Chainline: 52 mm
• Derailleur rear: Shimano CUES U4000 Shadow, RD-U4000-GS, 9-speed, Total capacity: 35 T
• Chain: Shimano CN-LG500, LINKGLIDE
• Cassette: Shimano CS-LG300-9, 9-speed, Combination: 11-13-15-17-20-23-28-36-46 T
• Pedals: ATB Alu Pro Reflex
• Engine: Nm, Breakaway at 25 km/h 15.5 mph), No of notches: 4 drive modes with support levels 60-340 % plus walk assistance, Mileage: See BOSCH Range Assistant
• Battery: Bosch CompactTube 400, The smart system, Capacity: 400 Wh/11.1 Ah, Voltage: 36 V, Technology: Li-Ion
• Bedieneinheit: Bosch System Controler, Das smarte System, LED indicator
• Charger: Bosch 2A charger
• Hubs rear: Shimano FH-TC500, Axle: QR12x142 mm
• Hubs front: Shimano HB-TC500, Axle: QR15x100 mm
• Rims: Oxygen RM-26 Disc, ETRTO: 26 x 622
• Tires: Schwalbe G-One Overland Performance, Tire size: 45-622, Foldable, RaceGuard, ADDIX Eco, Tubeless Ready, Reflective stripes
• Handlebar: Scorpo Rise, Width: 700 mm, Backsweep: 9°, Rise: 25 mm, Clamp: 31.8 mm
• Stem: Scorpo, Handlebar clamp: 31.8 mm, Angle: 20°
• Saddle: Selle Royal Vivo Ergo Athletic
• Seatpost: Scorpo, Length: 350 mm, Diameter: 27.2 mm, Insertion depth: min. 100 mm, Offset: 17 mm
• Shift lever right: Shimano CUES U4000, SL-U4000-9R, 9-speed
• Brake lever: Tektro HD-T280, 3 finger
• Headlight: Litemove K-Standard, Illuminance: 110 lux
• Taillight: Supernova TL 3 Z, Stationary taillight
• Carrier: Racktime STV RC 08, Rear rack mount: RTA, System: SNAP IT 2.0 & Kid'n'Carry
• Mudguards: Curana Apollo 60
• Kickstand: STEVENS Edge, Kickstand mount: KSA 40
• Bell: STEVENS D85 bell
• Weight: 20.9 kg
• Laden weight: 140 kg
• Color(s): Nordic Fade
• Sizes: LT: S, M, L

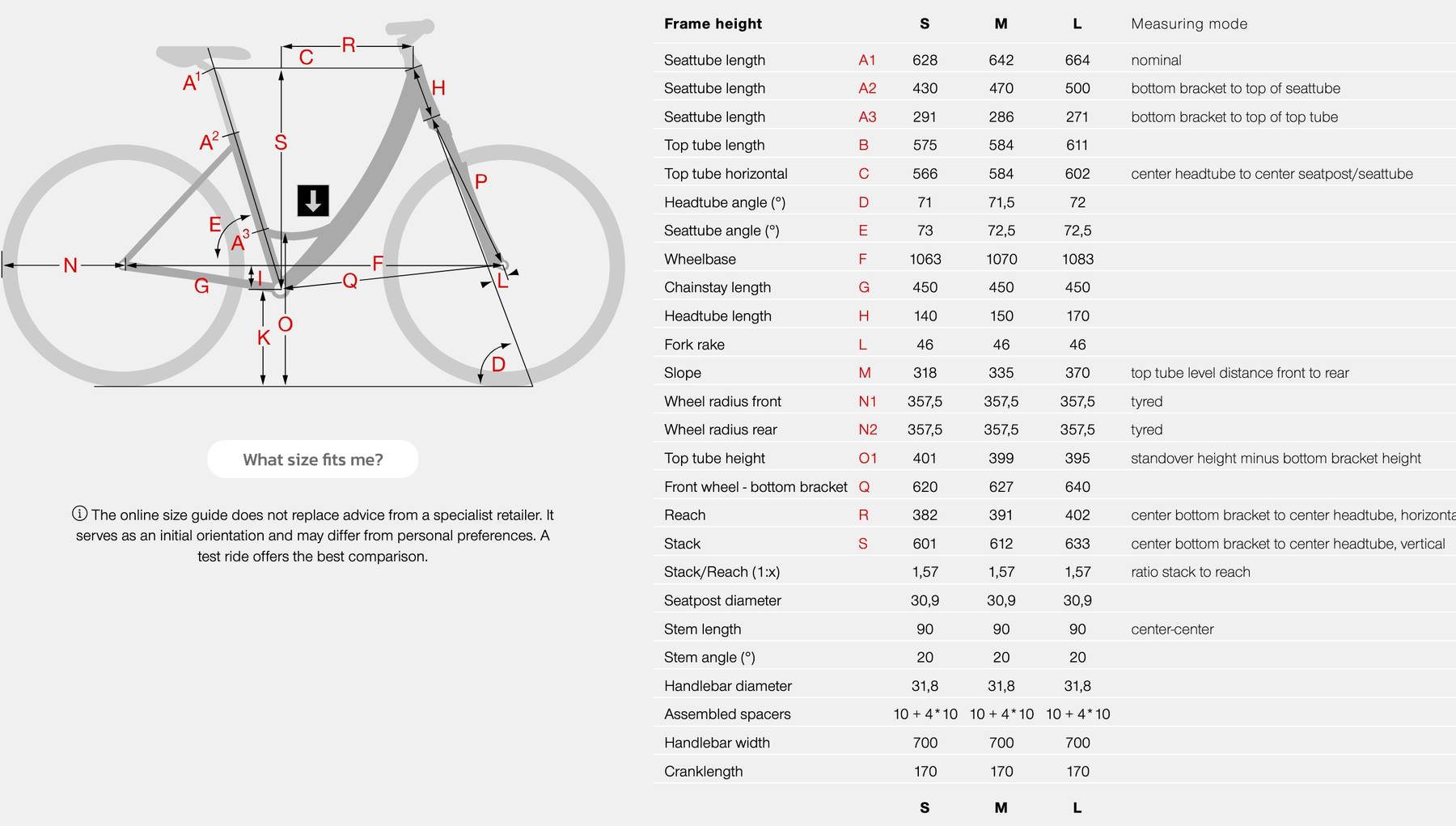

Geometry
