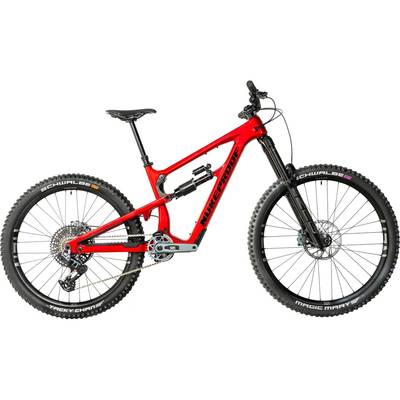

Nukeproof Mega Carbon Pro Full Suspension Mountain Bike

The Nukeproof Mega is an enduro bike built on the tenets of balance, predictability, and absolute speed. Originally conceived as the downhiller’s trail bike, it was purpose-built to conquer the legendary MEGAVALANCHE race in France and spawned a new category of bike that would be known as Enduro forever more. Over the past decade, the Mega has earned its reputation as a race-winning machine — with multiple Enduro World Series stage wins and four overall EWS titles to its name. It’s the evolution of relentless development and refinement, shaped by the feedback of world-class racers and dedicated riders alike. Now in its fourth generation, every detail of the Mega has been optimised for speed, control, and efficiency — built to go flat-out, wherever the trail leads.

Features

Advanced Carbon Frame Construction

The latest Nukeproof Mega is built around a full T700/T800 UD carbon frame, engineered to provide the optimal balance of stiffness, strength, weight and vertical compliance. Each section uses a specific lay up tailored to the loads it experiences while riding. The front triangle is designed for maximum torsional stiffness and precision at high speed, while the carbon rear triangle delivers controlled flex to maintain grip and traction on rough or off camber terrain. By using targeted fibre orientation and variable wall thicknesses, the engineers refined the frame’s spring characteristics and reduced unsprung mass, resulting in faster suspension response and more accurate wheel control. The outcome is a structure that climbs efficiently and descends with stability and control, a purely functional and technologically balanced platform developed for the toughest enduro conditions.

Design features

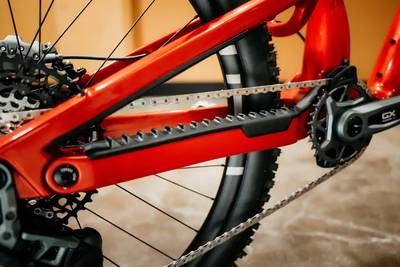

The Nukeproof Mega is engineered from the ground up to make riding and maintenance straightforward. Practical details support real world use: the front triangle fits a full size 750 ml bottle and there is an accessory mount under the top tube for tools or spares, keeping essentials within easy reach. The frame provides mud clearance for tyres up to 2.6 inches so you can keep speed in harsh conditions without compromise. For longevity the Mega uses MAX bearings throughout, delivering smooth operation in all weather. Service access is simple thanks to accessible hardware, sensible Allen key sizes, laser etched torque markings and tube in tube internal cable routing for a clean, rattle free setup. 3D contoured rubber guards on the down tube, seatstays and chainstays protect key areas from impacts and chain noise. Every element has been considered to create a bike that is fast, functional and durable enough for the toughest trails.

Optimized geometry and suspension kinematics

The Nukeproof Mega has been refined to deliver a precise balance of stability, predictability and speed. Built around Nukeproof’s latest Horst link suspension, the kinematics are set up to be supple off the top for small bump sensitivity, with firm mid stroke support for cornering and pumping, and a progressive end stroke that maintains control on bigger impacts. Anti squat levels are optimized to keep pedalling efficient on climbs while preserving a lively and planted feel on descents. The geometry follows Nukeproof’s Long, Low, Slack and Steep philosophy. Each frame size uses a dynamic saddle offset and size specific seat tube angles to place the rider in an efficient and comfortable pedalling position. The result is a chassis that climbs with precision, descends with confidence and remains balanced at race pace, ready to perform between the tape and on every other trail.

Specifications

• Frame: Nukeproof Mega V4 297 Carbon, 165mm Travel, ultra-strong monocoque UD Carbon Fibre frame, internally piped cable routing, ISCG 05 mounts, Max Bearings, Threaded 73mm BB, Boost 148mm rear axle spacing and 3D contoured Rubber frame protection
• Material: Carbon
• Frame Level: Elite Series
• Fork: RockShox Zeb Select +, Charger 3.1 RC2, 29" Boost 15x110mm Maxle Stealth, Debonair, 170mm, Gloss Black, 44mm Offset

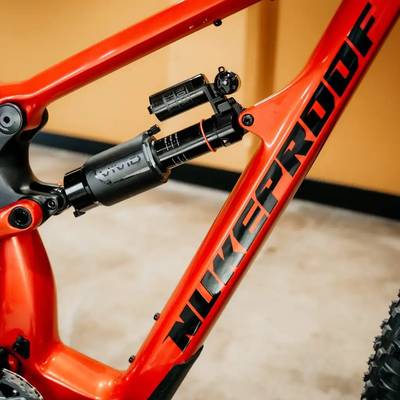

• Rear Shock: RockShox Vivid Select+ Air, 230X65mm, Bearing End, Custom Tuned with 1 Token, Rebound 25, Compression 30, 4x Lockout. Externally Adjustable Bottom Out
• Groupset: Sram Transmission GX
• Rear Derailleur: SRAM Transmission GX Rear Derailleur
• Crank: SRAM GX Eagle, 12-Speed, DUB, 165mm, 30T T-Type, 55mm CL

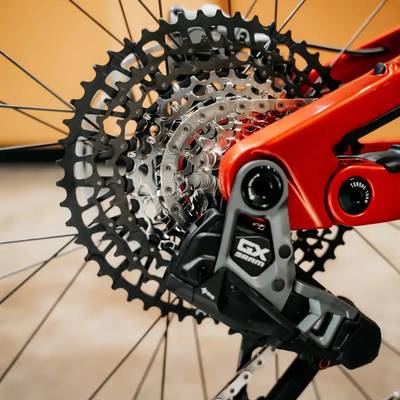

• Cassette: SRAM GX CS1275 T-Type, 12-Speed, 10-52T
• Brake Type: Post Mount
• Front Brake: SRAM Maven Bronze, Sintered pads
• Rear Brake: SRAM Maven Bronze, Sintered pads
• Wheelset: Nukeproof Horizon V2. F: 29", 15x110mm Boost, R:27.5", XD Freehub, 148x12mm Boost
• Outer Tyre: F: Schwalbe Magic Mary Evo, Super Gravity, TLE, 62-622 / 29x 2.4" Ultra Soft, R: Schwalbe Tacky Chan Evo, Super Gravity, TLE, 62-584 / 27.5x 2.4" Soft
• Handlebar: Nukeproof Horizon V2 25mm Rise, Width - S/M780mm, L800mm, XL800mm, XXL800mm
• Stem: Nukeproof Horizon, 45mm, Black
• Seatpost: Tranz-X YS108 Internal with SRAM Remote lever, S:150mm drop; M:170mm drop; L:200mm drop; XL/XXL:230mm drop
• Saddle: Nukeproof Horizon Enduro, Crn/Ti Rails
• Range: Enduro

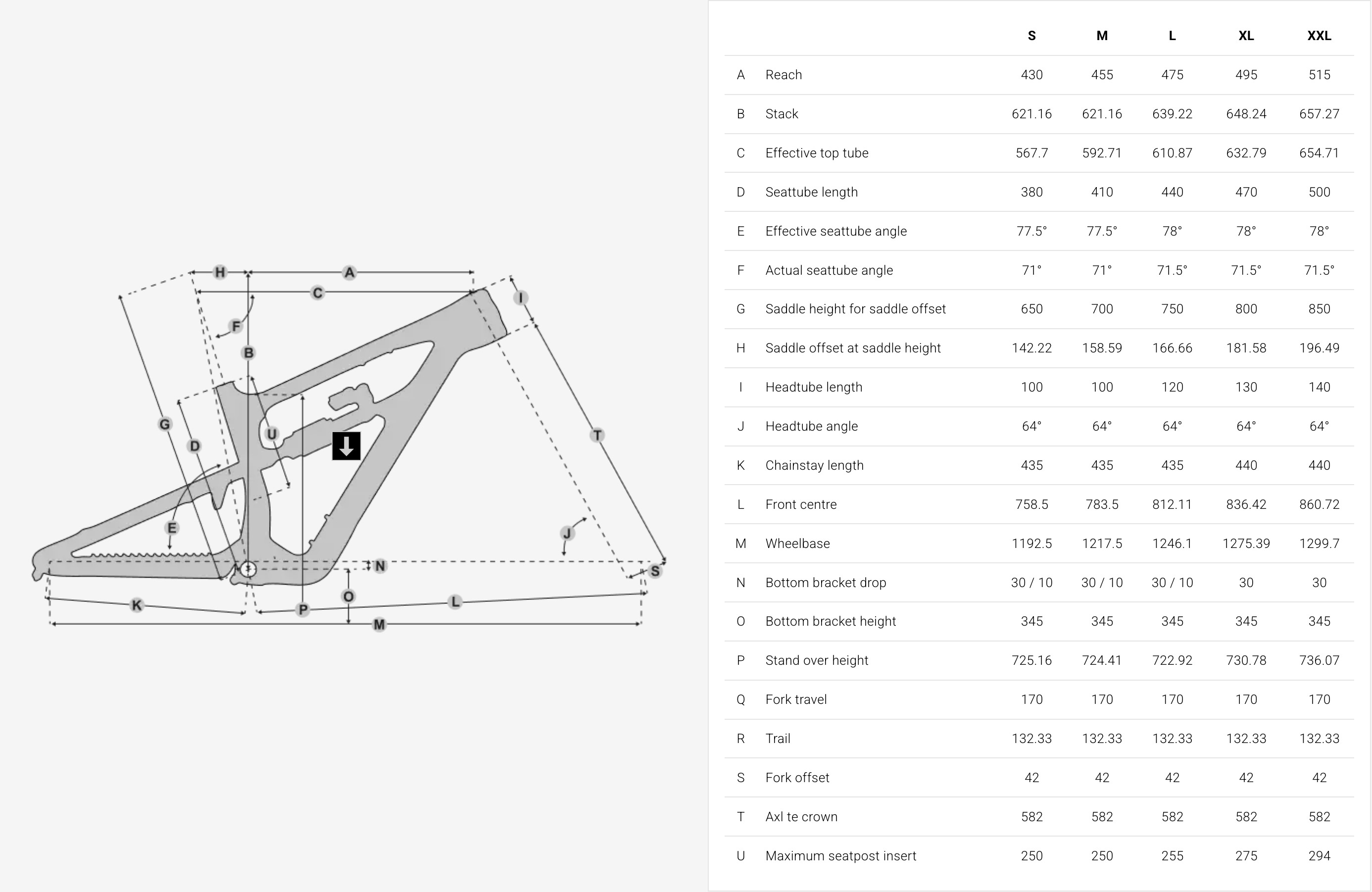

Geometry

• S,M,L: Mullet setup (29" front, 27.5" rear)
• XL,XXL: 29" front & rear
