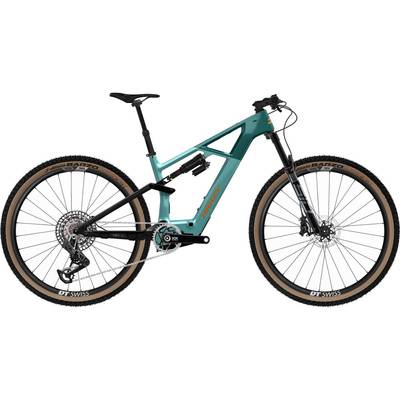

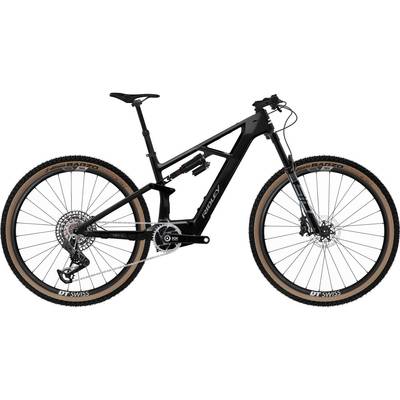

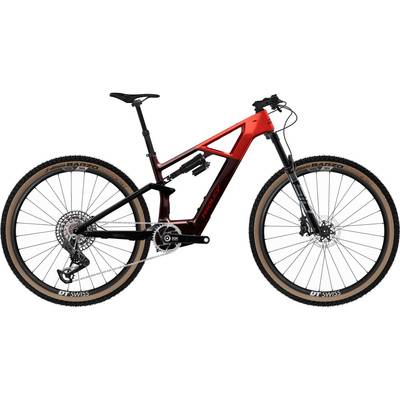

Ridley E-Raft GX Full Suspension Electric Mountain Bike

The Bosch SX drive unit in the E-Raft provides electrical assistance with a very natural and balanced feel, allowing you to focus on your riding.

Features

• The 140mm travel and low weight of the e-system keeps the total bike weight low as well ensuring a ride feel that is similar to a non-assisted MTB.
• The 400Wh battery has enough capacity to maximize your riding experience.
• We choose not to route the shifting and dropper post cables and brake hoses through the headset but opted for semi-internal cable routing to facilitate maintenance.

Specifications

• Frame: E-Raft
• Fork: Rockshox Lyric Select+, Charger 3.1 RC2, 150mm
• Rear Shock: RockShox Deluxe select 210x50
• Material: Carbon
• Groupset: Sram Transmission GX
• Crank: SRAM GX Eagle E-MTB 165mm ISIS M15 SE
• Crank Chainring: Sram Eagle Transmission E-MTB 36T
• Cassette: SRAM GX CS1275 T-Type, 12-Speed, 10-52T
• Electric bike: Yes
• Drive Unit: Bosch Drive Unit BDU3145
• Battery: Bosch CompactTube 400Wh w/o Screw-On Plate
• Brake Type: Post Mount
• Front Brake: SRAM DB8 Stealth 950mm
• Rear Brake: SRAM DB8 Stealth 2000mm
• Rear Derailleur: SRAM Transmission GX Rear Derailleur
• Handlebar: Nukeproof Horizon CRB, W:780, Rise:25, Bore:31,8
• Stem: Nukeproof Horizon 45mm BLA
• Seatpost: Ridley Dropper post // 31.6mm // 100mm travel
• Saddle: Selle San Marco Shortfit 2.0
• Front Wheel: DT Swiss HXC1700, 30mm internal, 350 internals
• Rear Wheel: DT Swiss HXC1700, 30mm internal, 350 internals
• Outer Tyre: Schwalbe Magic Mary Evo Super Gravity // 622x2.4 // TLR // Black-Black
• Max Tire Clearance 700c (*): 29" x 2.4"

Geometry
