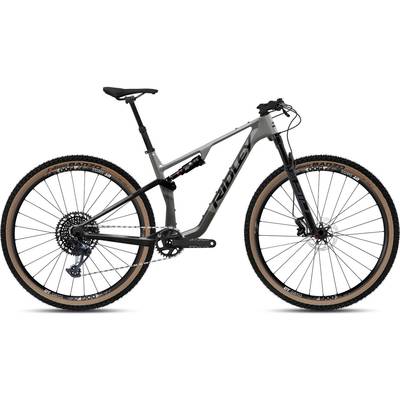

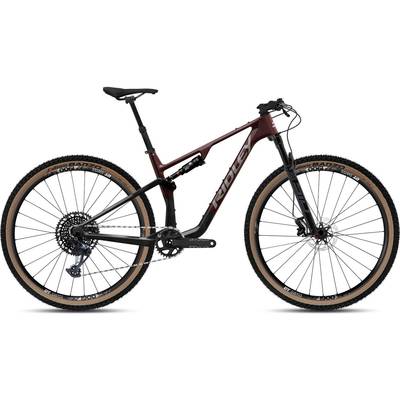

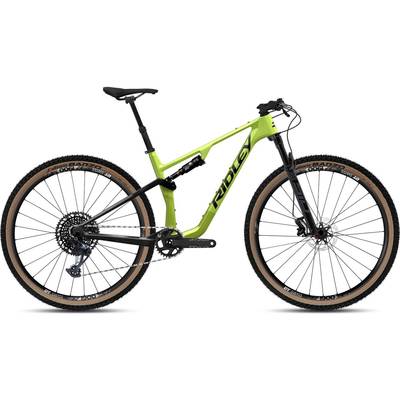

Ridley Raft Trail GX-X01 Full Suspenion Mountain Bike

TR stands for trail, but it could also mean ‘total ripper’. The Raft TR full suspension MTB is Ridleys way of doing a 120mm travel downcountry bike.

Features

• Performance tuned suspension combined with a geometry that strikes a perfect balance between agile and stable. Confidence inspiring when needed while allowing you to get loose and wild where possible. With the slack 66.6 degree head angle and long wheelbase you are always in control.
• The Raft TR has a lightweight carbon fiber frame that has mounting points for 2 bottle cages inside the front triangle. Other mounting points allow you to carry tools or other accessories such as a top tube pack on the bike.

Specifications

• Frame:RAFT Full Suspension
• Fork:RockShox SID Select Charger // RL 29er 120mm TA15/110
• Rear Shock:RockShox DeLuxe Select+ // 190x45 // 2 Position Manual adjustment
• Material:Carbon
• Groupset:Trail version 120mm - Sram X01 1x12sp
• Crank:SRAM Stylo 7K Eagle 175mm // 32T
• Cassette:SRAM XG-1275 Eagle // 10-52T // 12s
• Electric bike:No
• Brake Type:Flat Mount
• Front Brake:SRAM Level TL DB
• Rear Brake:SRAM Level TL DB // Flat Mount
• Rear Derailleur:SRAM X01 Eagle // 12s
• Handlebar:Race Face Aeffect R // 10mm Rise // 760mm
• Stem:Race Face Aeffect R // 50 mm // 35mm clamping area
• Seatpost:Ridley Dropper post // 31.6mm // 100mm travel
• Saddle:Selle San Marco Shortfit 2.0
• Front Wheel:DT Swiss X1900 Spline // 29Inch // Tubeless ready
• Rear Wheel:DT Swiss X1900 Spline, 29er // TA 12x148mm // Clincher-TLR // 25mm Internal Width
• Outer Tyre:Vittoria Barzo TNT G+ // 29x2.35" // Anthracite-Black-Black
• Max Tire Clearance 700c (*):29" x 2.4"
