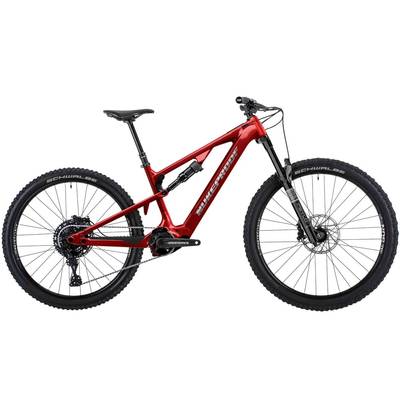

Nukeproof Kilowatt Alloy Comp Electric Mountain Bike

Mountain Bikes > Electric Full Suspension Bikes
Brand: Nukeproof
Nukeproof Kilowatt Alloy Comp Electric Mountain Bike
Retail Price: €4,499.00
Option:
Stock:
RRP:
Red - S
SBIKWANKP001
Due in 2027-05-01
€4499
Red - M
SBIKWANKP002
Due in 2027-05-01
€4499
Red - L
SBIKWANKP003
Due in 2027-05-01
€4499
Red - XL
SBIKWANKP004
Due in 2027-05-01
€4499

Our Kilowatt is our all-new Avinox powered e-bike.

  • Featuring an advanced aluminium design with intricate castings and our legendary suspension design and kinematic, this lightweight mid travel e-bike will be blisteringly quick around your local trails.
  • Built around 150R/160F suspension and a four-bar suspension layout, Kilowatt can also handle days at the bike park, but with the powerful Avinox motor, you won't need any uplift.
Who is the rider for Kilowatt Alloy?
  • This rider wants a light fast e-bike that is highly capable and with full power.
  • They spend days on local trails with their buddies but want a bike that handles days at the bike park.
  • This rider wants great value for money or just likes the robustness of an alloy frame.

Key Features

  • INTENDED USE: TRAIL / ALL MOUNTAIN / ENDURO
  • TRAVEL: 160MM FRONT, 150MM REAR
  • MATERIAL: 6061 T6 ALUMINIUM
  • WHEELSIZE: FRONT: 29" / REAR: 27.5" (29" COMPATIBLE VIA FLIP CHIP)
  • SIZES: S / M / L / XL

Specifications

  • Frame: Nukeproof Kilowatt Alloy, 150mm Travel, custom designed alloy frame complete with investment cast motor bracket, internal battery, internal cable routing, Max Bearings, Boost 148mm rear axle spacing and 3D contoured Rubber frame protection, Avinox M2 and M2S Compatible.
  • Fork: Rockshox Pyslo Gold RC, Isolator RC Damper, 29”, 160mm, 44mm Offset, BOOST, Tapered Steerer, Black
  • Shock: Rockshox Deluxe Select, LinearXL can, Debonair+, Rebound Adjust, 210x55 with standard hardware
  • Drive Unit: Avinox M2 Drive Unit, 1100W Peak Power, Up to 125NM Torque
  • Display: Avinox DPC100 Colour Touch Screen Display
  • Controller: Avinox Wireless BC100 Controller - Left
  • Battery: Avinox Fixed Internal Battery S: 600WH, M/L/XL 800WH
  • Electric Charger: Avinox 4A Charger Power Cable Charger with EU/UK Plug Supplied
  • Shifter: SRAM S100 Single Click band-on 22.2
  • Wheelset: Shimano TC500 hubs on WTB ST i30 Tough rims. F: 29", 15x110mm Boost, 6 Bolt, R:27.5"148x12mm Boost,6 Bolt, HG Freehub, replaceable cartridge bearing
  • Tyres: F: Schwalbe Magic Mary Gravity, TLR, Soft, 62-622 / 29x 2.4", R: Schwalbe Magic Mary Gravity, TLR, Soft, 62-584 / 27.5x 2.4"
  • Crankset: Forged, 155mm
  • Rear Deraileur: SRAM S100 Half Mount, 12-Speed Eagle
  • Chain : SRAM S-100, 120 Links
  • Cassette: SRAM S100 CS1210 Eagle, 12-Speed, 10-50T
  • Chain Guide: Nukeproof, supplied with frame
  • Brakes: SRAM DB4, Organic pads
  • Rotors: F: SRAM Centreline 2.0 200mm Rounded, R: SRAM Centreline 2.0 200mm Rounded
  • Handlebar: Nukeproof Electron, S/M: 25mm Rise Width - 780mm, L: 25mm Rise Width - 800mm, XL/XXL: 35mm Rise Width - 800mm
  • Stem: Forged, 40mm length, 31.8 clamp
  • Saddle : Nukeproof Electron Saddle, steel rails
  • Seatpost: X-Fusion Manic LC dropper post, S:150mm drop; M/L/XL/XXL:170mm drop
  • Headset: FSA no. 57e, sealed bearings, ZS44/28.6 – ZS56/40
  • Grips: Nukeproof Neutron Single Lock On, Diameter - S/M: 29.6mm, L/XL/XXL: 31.8mm
  • Weight: TBC
