Nukeproof Kilowatt Carbon Expert Electric Mountain Bike

Mountain Bikes > Electric Full Suspension Bikes
Brand: Nukeproof

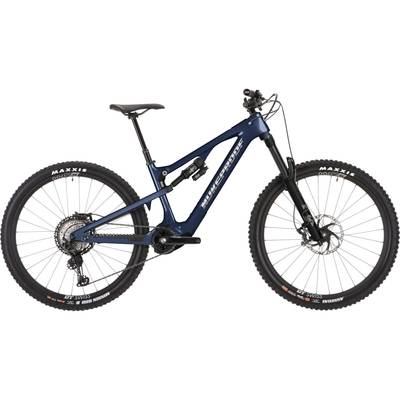

Nukeproof Kilowatt Carbon Expert Electric Mountain Bike
Retail Price: €7,499.00
Option:
Stock:
RRP:
Navy - S
SBIKWCNKP017
Due in 2027-05-01
€7499
Navy - M
SBIKWCNKP018
Due in 2027-05-01
€7499
Navy - L
SBIKWCNKP019
Due in 2027-05-01
€7499
Navy - XL
SBIKWCNKP020
Due in 2027-05-01
€7499

Our Kilowatt is our all-new, Avinox-powered e-bike.

  • Featuring an advanced carbon fibre frame and our legendary suspension design and kinematics, this lightweight mid-travel e-bike will be blisteringly quick around your local trails.
  • Built around 150R/160F suspension and a four-bar suspension layout, Kilowatt can also handle days at the bike park, but with the powerful Avinox motor, you won't need any uplift.
Who is the rider for Kilowatt Carbon?
  • This rider wants a light, fast e-bike that is highly capable and with full power.
  • They spend days on local trails with their buddies but want a bike that can handle days at the bike park.
  • This rider wants the highest performance for the lowest weight and will spend a little extra for carbon.

Key Features

  • INTENDED USE: TRAIL / ALL MOUNTAIN / ENDURO
  • TRAVEL: 160MM FRONT, 150MM REAR
  • MATERIAL: UD CARBON FIBRE
  • WHEELSIZE: FRONT: 29" / REAR: 27.5" (29" COMPATIBLE VIA FLIP CHIP)
  • SIZES: S / M / L / XL

Specifications

  • Frame: Nukeproof Kilowatt Carbon, 150mm Travel, custom designed ultra-strong monocoque UD Carbon Fibre frame, internal battery, internally piped cable routing, Max Bearings, Boost 148mm rear axle spacing and 3D contoured Rubber frame protection, Avinox M2 and M2S Compatible.
  • Fork: Fox 36 Float, 29”, Performance Series, Grip Damper, 160mm, 44mm Offset, BOOST, 1.5T Steerer, Black
  • Shock: Fox Float X, Performance Series, 2 Position, EVOL LV, Custom CS60, RL70, LMM, Rezi B60, Bleed 0.9 tune 210x55mm
  • Drive Unit: Avinox M2S Drive Unit, 1300W Peak Power, Up to 150NM Torque
  • Display: Avinox DP100 Flat Colour Touch Screen Display
  • Controller: Avinox Wireless BC100 Controller - Left
  • Battery: Avinox Fixed Internal Battery S: 600WH, M/L/XL 800WH
  • Electric Charger: Avinox 12A Charger Power Cable Charger with EU/UK Plug Supplied
  • Shifter: SRAM Eagle-90 Single Click MMX
  • Wheelset: DT SWISS HX1900. F: 29", 15x110mm Boost, 6 Bolt, R:27.5"148x12mm Boost,6 Bolt, XD Freehub
  • Tyres: F: Schwalbe Magic Mary Evo, Gravity Pro Radial, TLR, 63-622 / 29x 2.5" Ultra Soft, R: Schwalbe Albert Evo, Gravity Pro Radial, TLR, 63-584 / 27.5x 2.5" Soft
  • Crankset: SRAM S1000, 155mm
  • Rear Deraileur: SRAM Eagle-90 T-Type, 12-Speed Eagle
  • Chain : SRAM GX T-Type, 12-Speed Eagle, Flattop, PowerLock, 120 Links
  • Cassette: SRAM GX CS1275 T-Type, 12-Speed, 10-52T
  • Chain Guide: Nukeproof, supplied with frame
  • Brakes: SRAM Maven Base, Organic pads
  • Rotors: F: SRAM Centreline 2.0 200mm Rounded, R: SRAM Centreline 2.0 200mm Rounded
  • Handlebar: Nukeproof Horizon V2, S/M: 25mm Rise Width - 780mm, L: 25mm Rise Width - 800mm, XL/XXL: 38mm Rise Width - 800mm
  • Stem: Nukeproof Neutron, 45mm, Black
  • Saddle : Nukeproof Horizon SL, Cro-Mo Rails
  • Seatpost: Tranz-X YSI08 31.6mm Adjustable Internal with SRAM Remote lever, S:150mm drop; M:170mm drop; L/XL/XXL:200mm drop
  • Headset: Nukeproof, sealed bearings, ZS44/28.6 – ZS56/40
  • Grips: Nukeproof Neutron Single Lock On, Diameter - S/M: 29.6mm, L/XL/XXL: 31.8mm
  • Weight: TBC

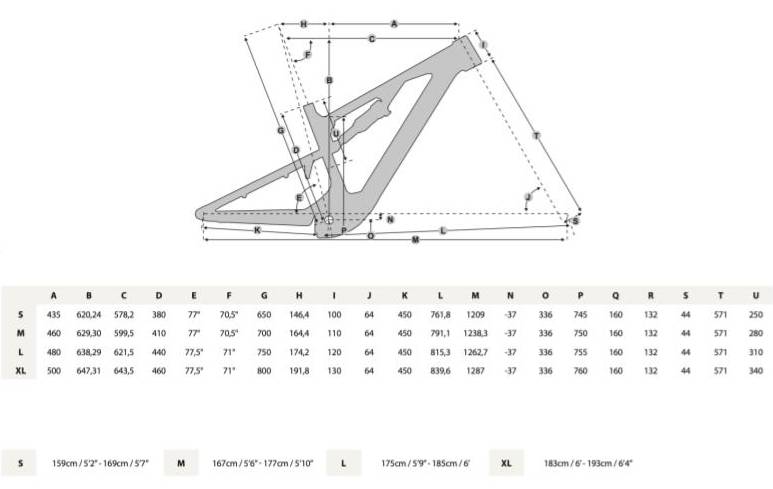

Geometry
