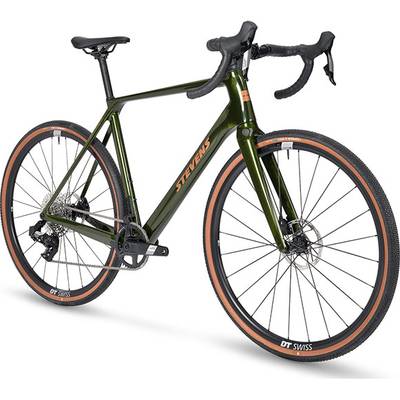

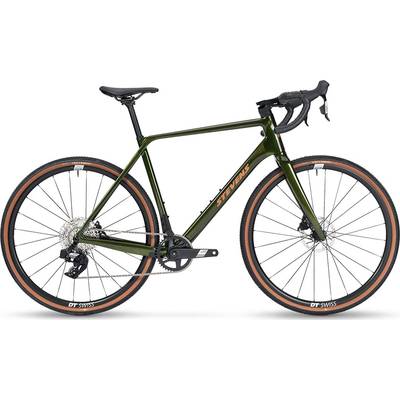

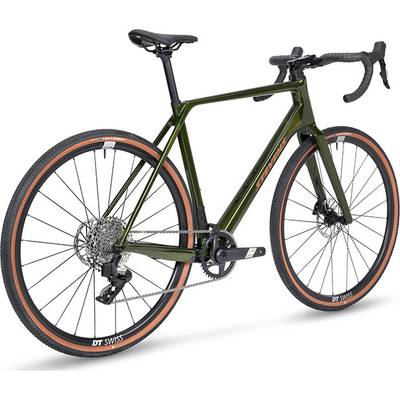

Stevens Camino RS Gravel Bike

The STEVENS Camino RS is a high-end race gravel bike developed from scratch for competitive use. Based on the geometry of the successful and award-winning Camino series, the frame combines gravel-specific features with design elements from our road bikes that blend in harmoniously. The tapered head tube has an aerodynamic shape, while the fork, down tube and seat stays are based on the characteristic design of the Arcalis Aero road bike with their tear-off edges. The sloping top tube is inspired by the STEVENS Xenith endurance bike and, in addition to a lower standover height, ensures seating comfort on long gravel rides. The frame and fork offer a maximum tyre clearance of 45 millimetres for those looking for the optimal mix of rolling resistance, comfort and weight.

Features

• Completely newly developed racing model of the Camino series with SRAM Apex AXS XPLR 1x12-speed drivetrain
• Lightweight, stiffness-optimised high-tech carbon frame with outstanding aero characteristics
• Proven DT Swiss G 1800 Spline wheelset
• Grippy Schwalbe G-One R Pro tyres in universal 40 mm width
• Optimised gravel cockpit with riser handlebars and Selle Royal saddle

Specifications

• Frame: Carbon SL Fiber,O.L.D.: 142 mm, Brake: flatmount disc, BB: Pressfit BB86, Front derailleur mount: braze-on, Cable routing: internal
• Fork: STEVENS Full Carbon SL,Tapered Steerer 1 1/8" - 1.5", O.L.D.: 100 mm, Brake: flatmount disc
• Headset: Token TK1556PD,Upper bearing cup: IS52/28.6, Lower bearing cup: IS52/40
• Brake front: SRAM Apex AXS,ED-APX-D1, Hydraulic disc brake, Flatmount standard
• Brake rear: SRAM Apex AXS,ED-APX-D1, Hydraulic disc brake, Flatmount standard
• Brake disc: SRAM Paceline,Rotor size: 160 mm, Center-Lock
• Crankset: SRAM Apex 1,FC-APX-1W-D1, 40 T, BB type: Wide DUB
• Derailleur rear: SRAM Apex XPLR AXS,RD-APX-1E-D1, 12-speed, AXS, Total capacity: 44 T
• Chain: SRAM Apex,CN-APX-D1
• Cassette: SRAM Apex XPLR,CS-PG-1231-D1, 12-speed, Combination: 11-12-13-15-17-19-21-24-28-32-38-44 T
• System wheel front: DT Swiss G 1800 Spline,Axle: QR12x100 mm, Tubeless ready
• System wheel rear: DT Swiss G 1800 Spline,Axle: QR12x142 mm, Tubeless ready
• Tires: Schwalbe G-One R Pro Evolution,Tire size: 40-622, Foldable, V-Guard, ADDIX Race, Tubeless Easy
• Handlebar: Scorpo Aero Gravel,Drop: 130 mm, Reach: 70 mm, Flare: 8°, Rise: 10 mm, Clamp: 31.8 mm
• Stem: Scorpo,Handlebar clamp: 31.8 mm, Angle: -6°
• Saddle: Selle Royal SRX
• Seatpost: Scorpo,Length: 350 mm, Diameter: 27.2 mm, Insertion depth: min. 100 mm
• Shift/brake lever left: SRAM Apex AXS D1
• Shift/brake lever right: SRAM Apex AXS D1,12-speed
• Bell: STEVENS D85 bell
• Weight: 8.6 kg
• Color(s): Forest Light
• Sizes: 48, 51, 54, 56, 58, 61 cm

Geometry
