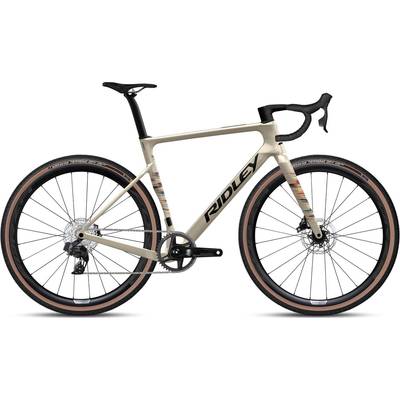

Ridley Astr RS Red XPLR 1x13 Gravel Bike

The ASTR RS is a performance-driven gravel bike developed for modern gravel racing. This is evident from its groundbreaking 52 mm tire clearance — a category-leading move that anticipates the growing trend toward wider tires. Gravel races are becoming increasingly rough, while riders are going faster than ever, placing new demands on the bike

Features

• The Astr RS also features aero-optimized tube shapes and a fork with integrated diffuser, based on our Falcn RS aero-to-weight research. In addition, it has a confidence-inspiring geometry with high-speed stability in mind: longer wheelbase, a slacker head angle, and a lower bottom bracket.
• Riders need to conserve more energy during the race. With optimized aerodynamics, greater comfort, lower rolling resistance from wider tires, and improved climbing performance thanks to the low weight, the Astr RS ensures riders reach the finale with more energy in the tank than their competitors.

Specifications

• Range: Gravel
• Frame: Astr RS 7E8/size XS/ARS26D2s
• Fork: Astr RS 7E8/ARS26D2s
• Material: Carbon
• Groupset: Sram Red XPLR 1x13
• Crank: SRAM RED XPLR incl Powermeter // 172,5 // 42
• Cassette: SRAM XG-1391 // 13s // 10-46
• Electric bike: No
• Brake Type: Flat Mount
• Rear Derailleur: SRAM RED XPLR AXS
• Handlebar: Forza Nimbus Pro // 90mm - 360mm (cc shifters) - 400mm (cc drops) // Stealth Black
• Seatpost: Forza Aero // 6mm Offset // 350mm
• Saddle: Selle Italia Novus Boost Superflow 3D // Carbon Rails // Black
• Front Wheel: ZIPP 303 XPLR SW // TA 12x100mm // Hookless TLR/ 54mm Deep // 32mmm Internal Width
• Rear Wheel: ZIPP 303 XPLR SW // TA 12x142mm // Hookless TLR/ 54mm Deep // 32mmm Internal Width
• Outer Tyre: Schwalbe G-One Evo R // Tubeless Ready // 50mm
• Max Tire Clearance 700c (*): 52mm (1x drivetrain) / 47mm (2x drivetrain)
• Configurable: Yes
• Sex: Men, Women
• Weight Limit: 110 KG (Bike included)
• Pedals: Not included **

Geometry
